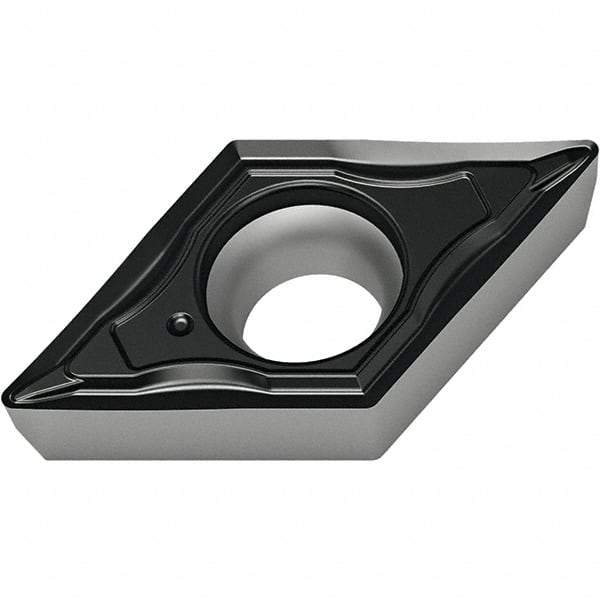

Walter - DPMT FP4 Grade WPP10S Turning Insert - TiCN+Al2O3+(TiCN) Finish, 55° Rhombic, 6.35mm Inscr Circle, 2.38mm Thick, 0.4mm Corner Radius
Item #: 47337894
Brand: Walter
Model #: 7134237
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Insert Style | DPMT |
| Length (mm) | 7.75 |
| Length (Decimal Inch) | 0.3050 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (Decimal Inch) | 0.0940 |
| Thickness (mm) | 2.38 |
| Corner Radius (mm) | 0.4 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Manufacturer's Grade | WPP10S |
| Coating | TiCN+Al2O3+(TiCN) |
| Chip Breaker | FP4 |
| Insert Length (Decimal Inch) | 0.3050 |
| OverallLength (mm) | 7.75 |
| Overall Length (Decimal Inch) | 0.3050 |
| Insert Length (mm) | 7.7519 |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| ISO Number | DPMT070204-FP4 WPP10S |
| Relief Angle | 11 |
| Proprietary Coating Designation | WPP10S |
| Coating Process | CVD |
| Manufacturers Catalog Number | 7134237 |
| Primary Workpiece Material | P |
| Included Angle | 55 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | DPMT-FP4 |
| Maximum Depth of Cut (mm) | 7.75 |
| Maximum Depth of Cut (Decimal Inch) | 0.3050 |
| Cutting Width (mm) | 7.75 |
| Shape | Rhombic 55 |
