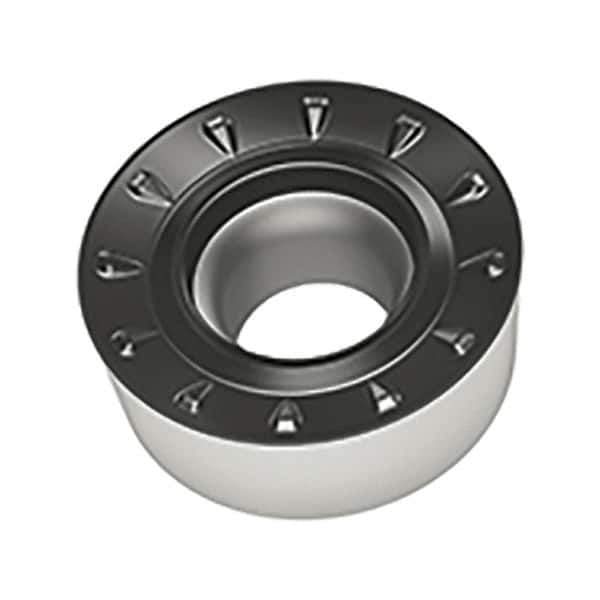

Walter - RCMT RM4 Grade WSM20S Turning Insert - TiAlN+Al2O3+(Al) Finish, 0° Round, 8mm Inscr Circle, 3.18mm Thick, 4mm Corner Radius
Item #: 47336656
Brand: Walter
Model #: 6839119
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Insert Style | RCMT |
| Inscribed Circle (mm) | 8.00 |
| Inscribed Circle (Decimal Inch) | 0.3150 |
| Thickness (Decimal Inch) | 0.1250 |
| Thickness (mm) | 3.18 |
| Corner Radius (mm) | 4 |
| Corner Radius (Decimal Inch) | 0.1570 |
| Manufacturer's Grade | WSM20S |
| Coating | TiAlN+Al2O3+(Al) |
| Chip Breaker | RM4 |
| Hole Diameter (mm) | 3.40 |
| Hole Diameter (Decimal Inch) | 0.1340 |
| ISO Number | RCMT0803M0-RM4 WSM20S |
| Relief Angle | 7 |
| Proprietary Coating Designation | WSM20S |
| Coating Process | PVD |
| Manufacturers Catalog Number | 6839119 |
| Included Angle | 0 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | RCMT-RM4 |
| Shape | Round |
