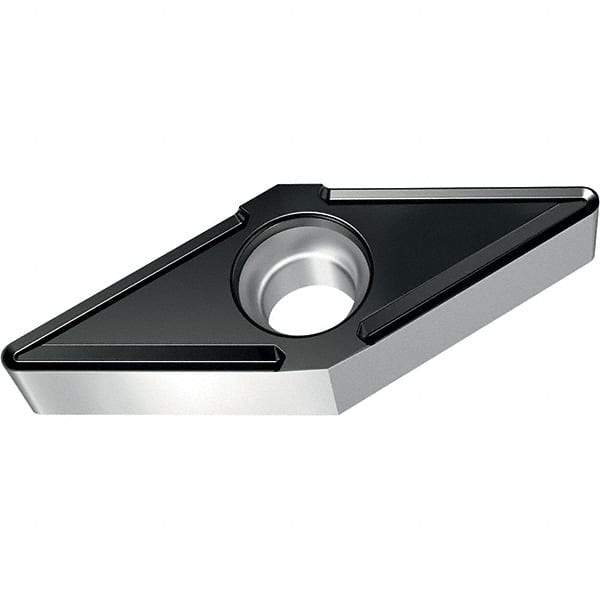

Walter - VBMT FP6 Grade WPP10S Turning Insert - TiCN+Al2O3+(TiCN) Finish, 35° Rhombic, 6.35mm Inscr Circle, 3.18mm Thick, 0.8mm Corner Radius
Item #: 47335773
Brand: Walter
Model #: 6730409
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Insert Style | VBMT |
| Length (mm) | 11.07 |
| Length (Decimal Inch) | 0.4360 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (Decimal Inch) | 0.1250 |
| Thickness (mm) | 3.18 |
| Corner Radius (mm) | 0.8 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Manufacturer's Grade | WPP10S |
| Coating | TiCN+Al2O3+(TiCN) |
| Chip Breaker | FP6 |
| Insert Length (Decimal Inch) | 0.4360 |
| OverallLength (mm) | 11.07 |
| Overall Length (Decimal Inch) | 0.4360 |
| Insert Length (mm) | 11.0709 |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| ISO Number | VBMT110308-FP6 WPP10S |
| Relief Angle | 5 |
| Proprietary Coating Designation | WPP10S |
| Coating Process | CVD |
| Manufacturers Catalog Number | 6730409 |
| Included Angle | 35 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | VBMT-FP6 |
| Maximum Depth of Cut (mm) | 11.07 |
| Maximum Depth of Cut (Decimal Inch) | 0.4360 |
| Cutting Width (mm) | 11.07 |
| Shape | Rhombic 35 |
