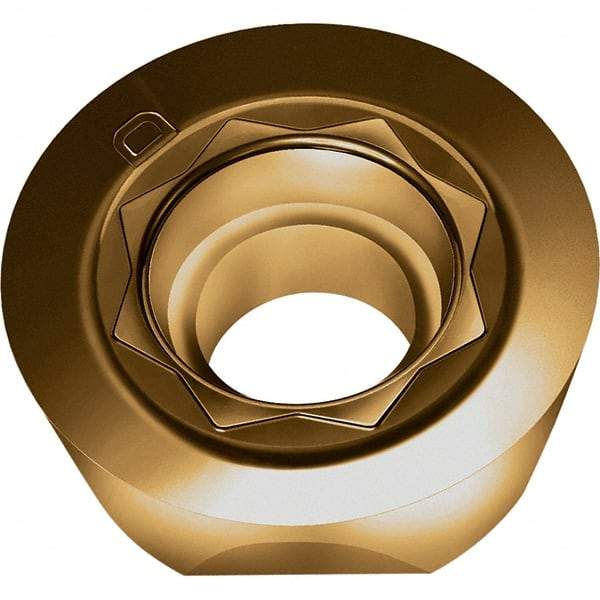

Walter - D67 Grade WSM35S Milling Insert - 3.18mm Thick, 8mm Inscribed Circle, 4mm Corner Radius
Item #: 47329206
Brand: Walter
Model #: 7058547
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Manufacturer's Grade | WSM35S |
| Length (mm) | 8.30 |
| Length (Decimal Inch) | 0.3270 |
| Inscribed Circle (mm) | 8.00 |
| Inscribed Circle (Decimal Inch) | 0.3150 |
| Thickness (mm) | 3.18 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.1570 |
| Corner Radius (mm) | 4.00 |
| Hole Diameter (mm) | 3.40 |
| Hole Diameter (Decimal Inch) | 0.1340 |
| Relief Angle | 11.000 |
| Coating Process | PVD |
| Insert Hand | Neutral |
| Chipbreaker | D67 |
| Maximum Depth of Cut (mm) | 8.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.3270 |
| Manufacturers Catalog Number | ROHX0803M0-D67 WSM35S |
