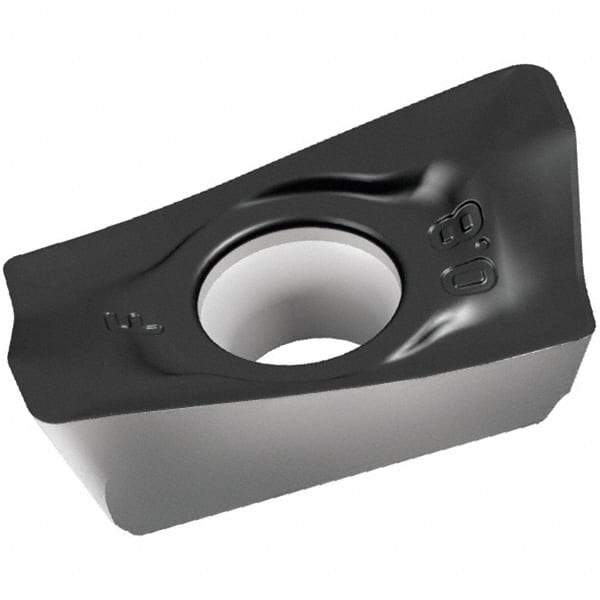

Walter - F56 Grade WSM35S Milling Insert - 6.15mm Thick, 10.8mm Inscribed Circle, 5mm Corner Radius
Item #: 47329065
Brand: Walter
Model #: 7058504
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Manufacturer's Grade | WSM35S |
| Width (mm) | 10.80 |
| Width (Decimal Inch) | 0.4250 |
| Length (mm) | 17.50 |
| Length (Decimal Inch) | 0.6890 |
| Inscribed Circle (mm) | 10.80 |
| Inscribed Circle (Decimal Inch) | 0.4250 |
| Thickness (mm) | 6.15 |
| Thickness (Decimal Inch) | 0.2420 |
| Corner Radius (Decimal Inch) | 0.1970 |
| Corner Radius (mm) | 5.00 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Insert Hand | Right Hand |
| Chipbreaker | F56 |
| Maximum Depth of Cut (mm) | 17.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.6890 |
| Manufacturers Catalog Number | ADGT160650R-F56 WSM35S |
