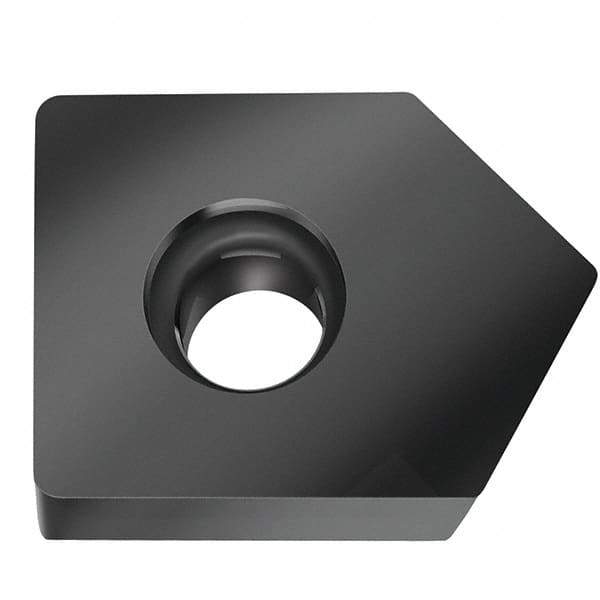

Walter - A88 Grade WXM15 Milling Insert - 3.97mm Thick, 9.52mm Inscribed Circle, 0.5mm Corner Radius
Item #: 47328562
Brand: Walter
Model #: 7021669
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Manufacturer's Grade | WXM15 |
| Length (mm) | 9.52 |
| Length (Decimal Inch) | 0.3750 |
| Inscribed Circle (mm) | 9.52 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (mm) | 3.97 |
| Thickness (Decimal Inch) | 0.1560 |
| Corner Radius (Decimal Inch) | 0.0200 |
| Corner Radius (mm) | 0.50 |
| Hole Diameter (mm) | 3.90 |
| Hole Diameter (Decimal Inch) | 0.1540 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Insert Hand | Right Hand |
| Chipbreaker | A88 |
| Maximum Depth of Cut (mm) | 9.52 |
| Maximum Depth of Cut (Decimal Inch) | 0.3750 |
| Manufacturers Catalog Number | SDHX09T3AZR-A88 WXM15 |
