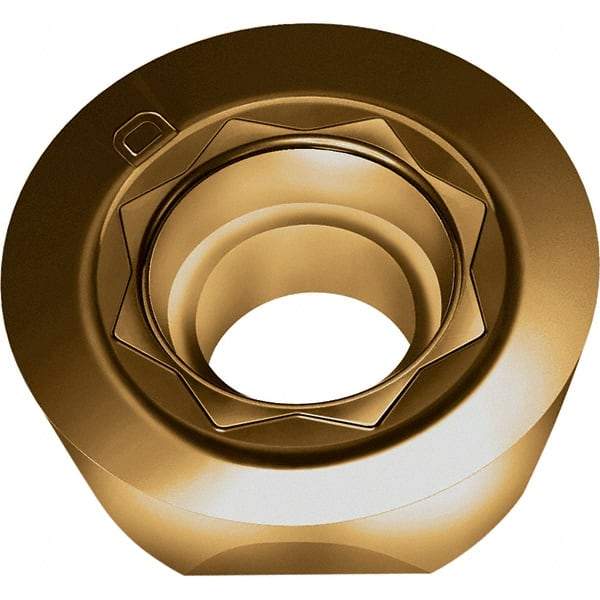

Walter - D67 Grade WSM45X Milling Insert - 3.97mm Thick, 10mm Inscribed Circle, 5mm Corner Radius
Item #: 47328471
Brand: Walter
Model #: 6949985
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Manufacturer's Grade | WSM45X |
| Length (mm) | 0.00 |
| Length (Decimal Inch) | 0.0000 |
| Inscribed Circle (mm) | 10.00 |
| Inscribed Circle (Decimal Inch) | 0.3940 |
| Thickness (mm) | 3.97 |
| Thickness (Decimal Inch) | 0.1560 |
| Corner Radius (Decimal Inch) | 0.1970 |
| Corner Radius (mm) | 5.00 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Relief Angle | 11.000 |
| Coating Process | CVD |
| Insert Hand | Neutral |
| Chipbreaker | D67 |
| Maximum Depth of Cut (mm) | 0.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0000 |
| Manufacturers Catalog Number | ROMX10T3M0-D67 WSM45X |
