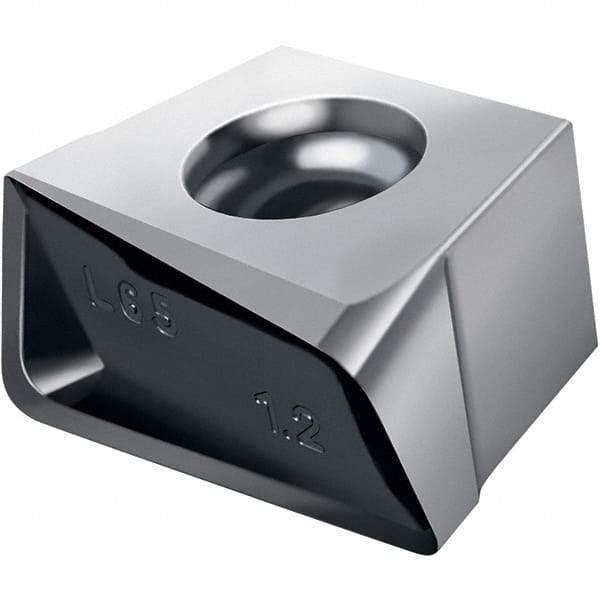

Walter - L65T Grade WSM45X Milling Insert - 6.8mm Thick, 4mm Corner Radius
Item #: 47328455
Brand: Walter
Model #: 6948597
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Manufacturer's Grade | WSM45X |
| Width (mm) | 10.50 |
| Width (Decimal Inch) | 0.4130 |
| Length (mm) | 14.00 |
| Length (Decimal Inch) | 0.5510 |
| Inscribed Circle (mm) | 0.00 |
| Inscribed Circle (Decimal Inch) | 0.0000 |
| Thickness (mm) | 6.80 |
| Thickness (Decimal Inch) | 0.2680 |
| Corner Radius (Decimal Inch) | 0.1570 |
| Corner Radius (mm) | 4.00 |
| Hole Diameter (mm) | 0.00 |
| Hole Diameter (Decimal Inch) | 0.0000 |
| Relief Angle | 0.000 |
| Coating Process | CVD |
| Insert Hand | Right Hand |
| Chipbreaker | L65T |
| Maximum Depth of Cut (mm) | 14.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5510 |
| Manufacturers Catalog Number | XNHX130640R-L65T WSM45X |
