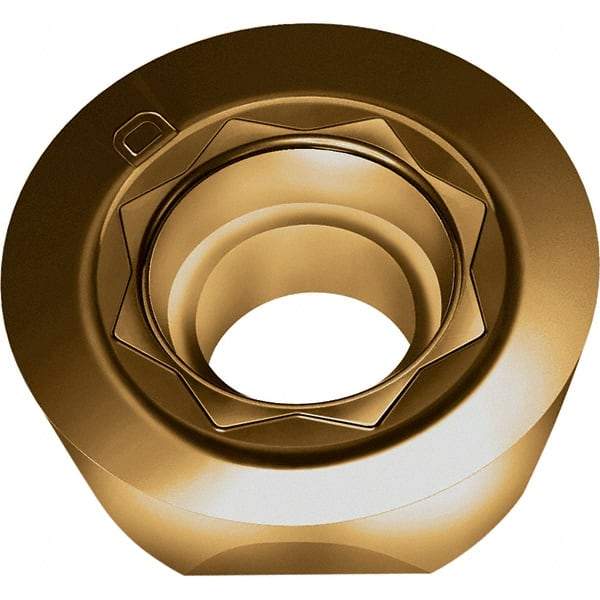

Walter - D67 Grade WSM35S Milling Insert - 4.76mm Thick, 12mm Inscribed Circle, 6mm Corner Radius
Item #: 47327903
Brand: Walter
Model #: 6949987
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Manufacturer's Grade | WSM35S |
| Length (mm) | 12.70 |
| Length (Decimal Inch) | 0.5000 |
| Inscribed Circle (mm) | 12.00 |
| Inscribed Circle (Decimal Inch) | 0.4720 |
| Thickness (mm) | 4.76 |
| Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.2360 |
| Corner Radius (mm) | 6.00 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Relief Angle | 11.000 |
| Coating Process | PVD |
| Insert Hand | Neutral |
| Chipbreaker | D67 |
| Maximum Depth of Cut (mm) | 12.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.5000 |
| Manufacturers Catalog Number | ROMX1204M0-D67 WSM35S |
