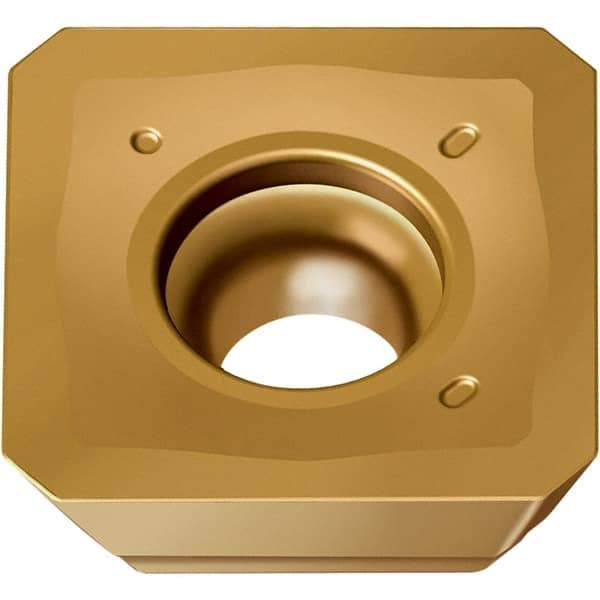

Walter - A57 Grade WAK15 Milling Insert - 4.76mm Thick, 12.7mm Inscribed Circle, 0.3mm Corner Radius
Item #: 47327762
Brand: Walter
Model #: 7021629
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Manufacturer's Grade | WAK15 |
| Length (mm) | 12.70 |
| Length (Decimal Inch) | 0.5000 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (mm) | 4.76 |
| Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0120 |
| Corner Radius (mm) | 0.30 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Relief Angle | 15.000 |
| Coating Process | CVD |
| Insert Hand | Neutral |
| Chipbreaker | A57 |
| Maximum Depth of Cut (mm) | 12.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.5000 |
| Manufacturers Catalog Number | SDMW1204AZN-A57 WAK15 |
