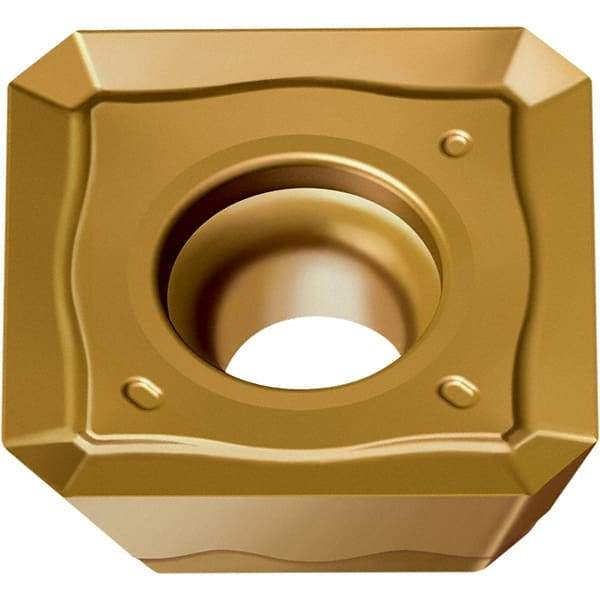

Walter - F57 Grade WAK15 Milling Insert - 3.97mm Thick, 9.52mm Inscribed Circle, 0.3mm Corner Radius
Item #: 47327721
Brand: Walter
Model #: 7021676
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Manufacturer's Grade | WAK15 |
| Length (mm) | 9.52 |
| Length (Decimal Inch) | 0.3750 |
| Inscribed Circle (mm) | 9.52 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (mm) | 3.97 |
| Thickness (Decimal Inch) | 0.1560 |
| Corner Radius (Decimal Inch) | 0.0120 |
| Corner Radius (mm) | 0.30 |
| Hole Diameter (mm) | 3.90 |
| Hole Diameter (Decimal Inch) | 0.1540 |
| Relief Angle | 15.000 |
| Coating Process | CVD |
| Insert Hand | Neutral |
| Chipbreaker | F57 |
| Maximum Depth of Cut (mm) | 9.52 |
| Maximum Depth of Cut (Decimal Inch) | 0.3750 |
| Manufacturers Catalog Number | SDGT09T3AZN-F57 WAK15 |
