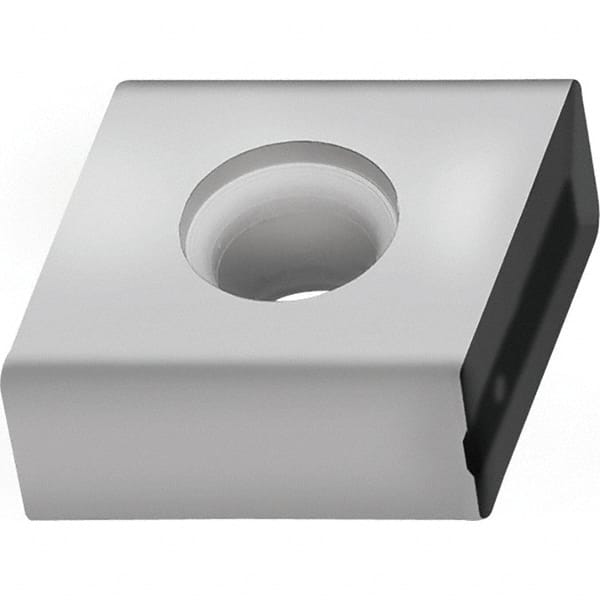

Walter - CNMU160812-D57T WKP25S Milling Insert
Item #: 47327622
Brand: Walter
Model #: 7028021
Product Specifications
| Manufacturer's Grade | WKP25S |
| Width (mm) | 15.00 |
| Width (Decimal Inch) | 0.5910 |
| Length (mm) | 16.00 |
| Length (Decimal Inch) | 0.6300 |
| Inscribed Circle (mm) | 15.00 |
| Inscribed Circle (Decimal Inch) | 0.5910 |
| Thickness (mm) | 8.00 |
| Thickness (Decimal Inch) | 0.3150 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Corner Radius (mm) | 1.20 |
| Hole Diameter (mm) | 5.50 |
| Hole Diameter (Decimal Inch) | 0.2170 |
| Relief Angle | 0.000 |
| Coating Process | CVD |
| Insert Hand | Neutral |
| Chipbreaker | D57T |
| Maximum Depth of Cut (mm) | 16.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.6300 |
| Manufacturers Catalog Number | CNMU160812-D57T WKP25S |
