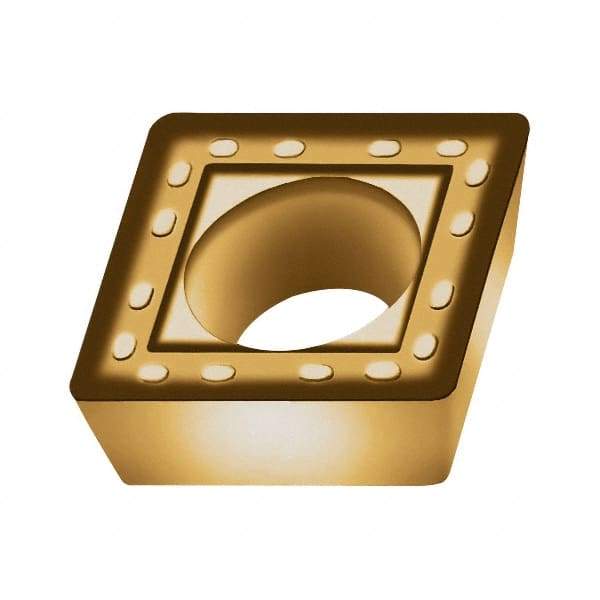

Walter - F55 Grade WKP25S Milling Insert - 3.18mm Thick, 6.35mm Inscribed Circle, 0.4mm Corner Radius
Item #: 47327341
Brand: Walter
Model #: 7028066
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Manufacturer's Grade | WKP25S |
| Length (mm) | 6.35 |
| Length (Decimal Inch) | 0.2500 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (mm) | 3.18 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Corner Radius (mm) | 0.40 |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Relief Angle | 15.000 |
| Coating Process | CVD |
| Insert Hand | Neutral |
| Chipbreaker | F55 |
| Maximum Depth of Cut (mm) | 6.35 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Manufacturers Catalog Number | SPMT060304-F55 WKP25S |
