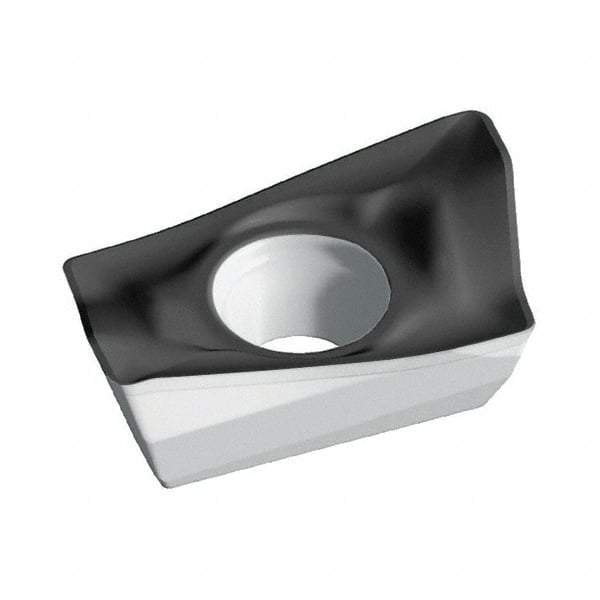

Walter - G56 Grade WSP45S Milling Insert - 3.18mm Thick, 6.75mm Inscribed Circle, 0.4mm Corner Radius
Item #: 47327267
Brand: Walter
Model #: 7057740
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Manufacturer's Grade | WSP45S |
| Width (mm) | 6.75 |
| Width (Decimal Inch) | 0.2660 |
| Length (mm) | 9.52 |
| Length (Decimal Inch) | 0.3750 |
| Inscribed Circle (mm) | 6.75 |
| Inscribed Circle (Decimal Inch) | 0.2660 |
| Thickness (mm) | 3.18 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Corner Radius (mm) | 0.40 |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Insert Hand | Right Hand |
| Chipbreaker | G56 |
| Maximum Depth of Cut (mm) | 9.52 |
| Maximum Depth of Cut (Decimal Inch) | 0.3750 |
| Manufacturers Catalog Number | ADMT080304R-G56 WSP45S |
