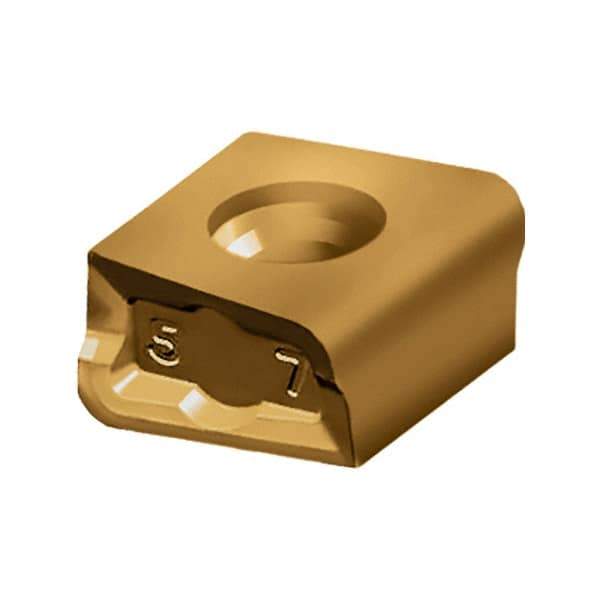

Walter - F57T Grade WSP45S Milling Insert - 5.5mm Thick, 0.8mm Corner Radius
Item #: 47327150
Brand: Walter
Model #: 7057757
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Manufacturer's Grade | WSP45S |
| Width (mm) | 12.30 |
| Width (Decimal Inch) | 0.4840 |
| Length (mm) | 10.00 |
| Length (Decimal Inch) | 0.3940 |
| Inscribed Circle (mm) | 0.00 |
| Inscribed Circle (Decimal Inch) | 0.0000 |
| Thickness (mm) | 5.50 |
| Thickness (Decimal Inch) | 0.2170 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.80 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Insert Hand | Neutral |
| Chipbreaker | F57T |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Manufacturers Catalog Number | LNHU100508-F57T WSP45S |
