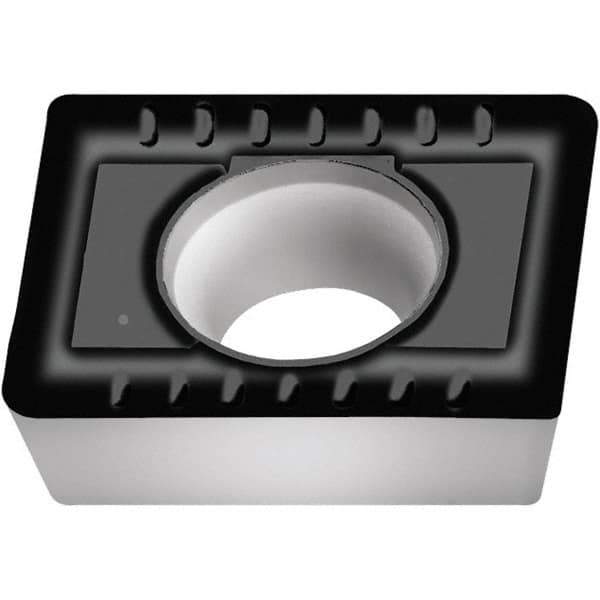

Walter - D51 Grade WSP45S Milling Insert - 3.97mm Thick, 9.52mm Inscribed Circle, 0.8mm Corner Radius
Item #: 47327077
Brand: Walter
Model #: 7057773
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Manufacturer's Grade | WSP45S |
| Width (mm) | 9.52 |
| Width (Decimal Inch) | 0.3750 |
| Length (mm) | 15.00 |
| Length (Decimal Inch) | 0.5910 |
| Inscribed Circle (mm) | 9.52 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (mm) | 3.97 |
| Thickness (Decimal Inch) | 0.1560 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.80 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Relief Angle | 11.000 |
| Coating Process | PVD |
| Insert Hand | Right Hand |
| Chipbreaker | D51 |
| Maximum Depth of Cut (mm) | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5910 |
| Manufacturers Catalog Number | LPMT15T308R-D51 WSP45S |
