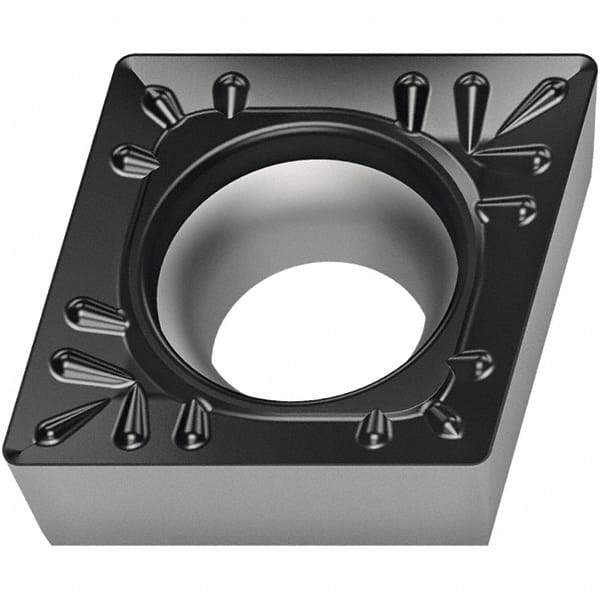

Walter - CCMT RM4 Grade WSM30S Turning Insert - TiAlN+Al2O3+(Al) Finish, 80° Rhombic, 6.35mm Inscr Circle, 2.38mm Thick, 0.4mm Corner Radius
Item #: 47312814
Brand: Walter
Model #: 6839092
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Insert Style | CCMT |
| Length (mm) | 6.45 |
| Length (Decimal Inch) | 0.2540 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (Decimal Inch) | 0.0940 |
| Thickness (mm) | 2.38 |
| Corner Radius (mm) | 0.4 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Manufacturer's Grade | WSM30S |
| Coating | TiAlN+Al2O3+(Al) |
| Chip Breaker | RM4 |
| Insert Length (Decimal Inch) | 0.2540 |
| OverallLength (mm) | 6.45 |
| Overall Length (Decimal Inch) | 0.2540 |
| Insert Length (mm) | 6.4480 |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| ISO Number | CCMT060204-RM4 WSM30S |
| Relief Angle | 7 |
| Proprietary Coating Designation | WSM30S |
| Coating Process | PVD |
| Manufacturers Catalog Number | 6839092 |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CCMT-RM4 |
| Maximum Depth of Cut (mm) | 6.45 |
| Maximum Depth of Cut (Decimal Inch) | 0.2540 |
| Cutting Width (mm) | 6.45 |
| Shape | Rhombic 80 |
