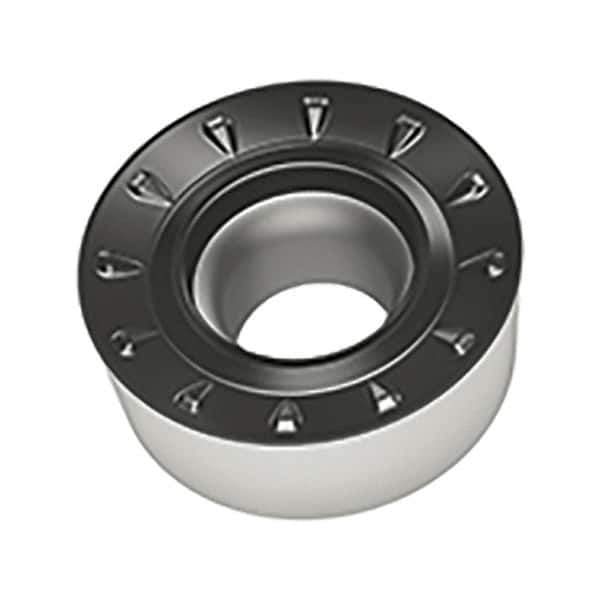

Walter - RCMT RM4 Grade WSM20S Turning Insert - TiAlN+Al2O3+(Al) Finish, 0° Round, 12mm Inscr Circle, 4.76mm Thick, 6mm Corner Radius
Item #: 47312681
Brand: Walter
Model #: 6839123
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Insert Style | RCMT |
| Inscribed Circle (mm) | 12.00 |
| Inscribed Circle (Decimal Inch) | 0.4720 |
| Thickness (Decimal Inch) | 0.1880 |
| Thickness (mm) | 4.76 |
| Corner Radius (mm) | 6 |
| Corner Radius (Decimal Inch) | 0.2360 |
| Manufacturer's Grade | WSM20S |
| Coating | TiAlN+Al2O3+(Al) |
| Chip Breaker | RM4 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| ISO Number | RCMT1204M0-RM4 WSM20S |
| Relief Angle | 7 |
| Proprietary Coating Designation | WSM20S |
| Coating Process | PVD |
| Manufacturers Catalog Number | 6839123 |
| Included Angle | 0 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | RCMT-RM4 |
| Shape | Round |
