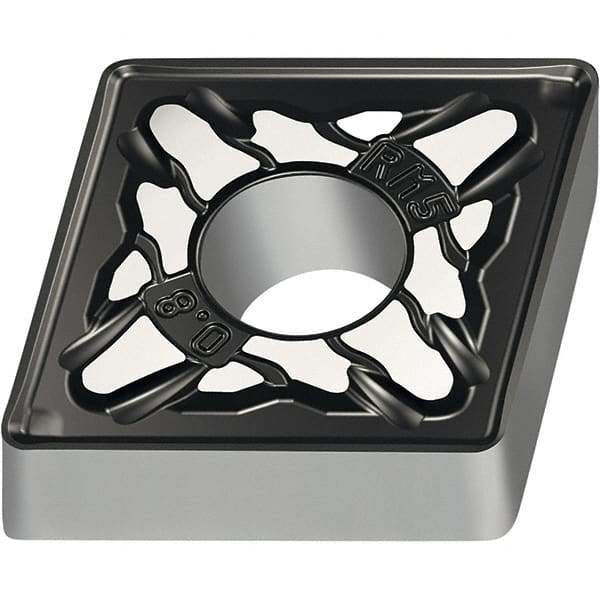

Walter - CNMG RM5 Grade WMP20S Turning Insert - TiCN+Al2O3+(TiCN) Finish, 80° Rhombic, 12.7mm Inscr Circle, 4.76mm Thick, 0.8mm Corner Radius
Item #: 47312210
Brand: Walter
Model #: 6944683
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Length (mm) | 12.90 |
| Length (Decimal Inch) | 0.5080 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1880 |
| Thickness (mm) | 4.76 |
| Corner Radius (mm) | 0.8 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Manufacturer's Grade | WMP20S |
| Coating | TiCN+Al2O3+(TiCN) |
| Chip Breaker | RM5 |
| Insert Length (Decimal Inch) | 0.5080 |
| OverallLength (mm) | 12.90 |
| Overall Length (Decimal Inch) | 0.5080 |
| Insert Length (mm) | 12.8959 |
| Hole Diameter (mm) | 5.16 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| ISO Number | CNMG120408-RM5 WMP20S |
| Relief Angle | 0 |
| Proprietary Coating Designation | WMP20S |
| Coating Process | CVD |
| Manufacturers Catalog Number | 6944683 |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CNMG-RM5 |
| Maximum Depth of Cut (mm) | 12.90 |
| Maximum Depth of Cut (Decimal Inch) | 0.5080 |
| Cutting Width (mm) | 12.90 |
| Shape | Rhombic 80 |
