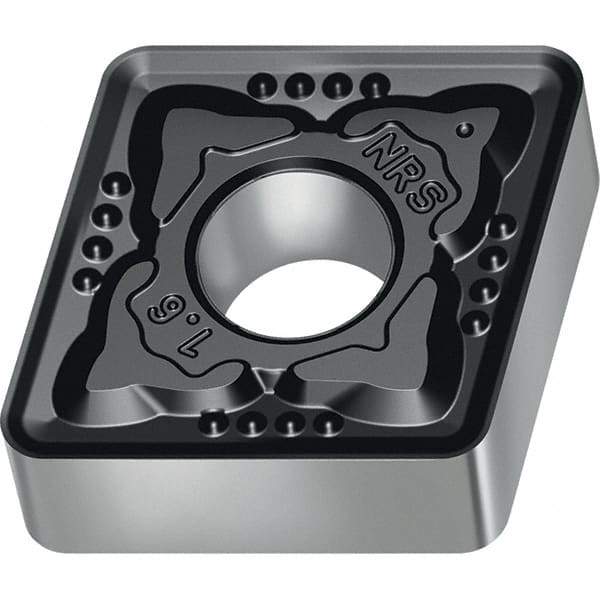

Walter - CNMG NRS Grade WSM10S Turning Insert - TiAlN+Al2O3+(Al) Finish, 80° Rhombic, 15.88mm Inscr Circle, 6.35mm Thick, 1.6mm Corner Radius
Item #: 47311436
Brand: Walter
Model #: 7053909
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Length (mm) | 16.12 |
| Length (Decimal Inch) | 0.6350 |
| Inscribed Circle (mm) | 15.88 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness (Decimal Inch) | 0.2500 |
| Thickness (mm) | 6.35 |
| Corner Radius (mm) | 1.60 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Manufacturer's Grade | WSM10S |
| Coating | TiAlN+Al2O3+(Al) |
| Chip Breaker | NRS |
| Insert Length (Decimal Inch) | 0.6350 |
| OverallLength (mm) | 16.12 |
| Overall Length (Decimal Inch) | 0.6350 |
| Insert Length (mm) | 16.1199 |
| Hole Diameter (mm) | 6.35 |
| Hole Diameter (Decimal Inch) | 0.2500 |
| ISO Number | CNMG160616-NRS WSM10S |
| Relief Angle | 0 |
| Proprietary Coating Designation | WSM10S |
| Coating Process | PVD |
| Manufacturers Catalog Number | 7053909 |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CNMG-NRS |
| Maximum Depth of Cut (mm) | 16.12 |
| Maximum Depth of Cut (Decimal Inch) | 0.6350 |
| Cutting Width (mm) | 16.12 |
| Shape | Rhombic 80 |
