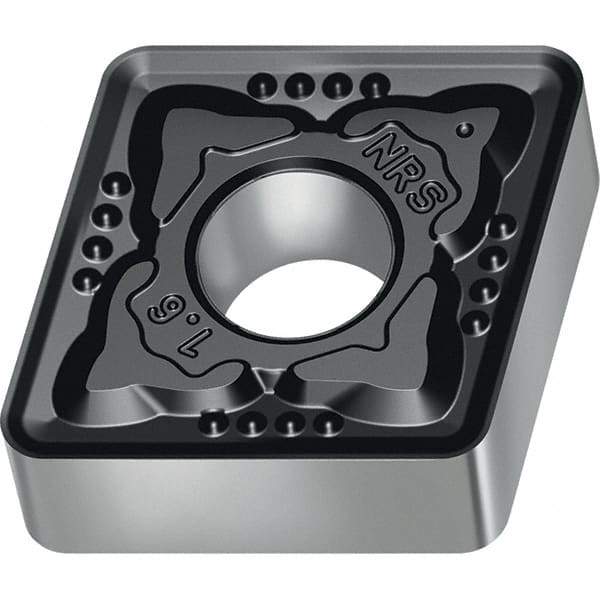

Walter - CNMG NRS Grade WSM20S Turning Insert - TiAlN+Al2O3+(Al) Finish, 80° Rhombic, 19.05mm Inscr Circle, 6.35mm Thick, 1.2mm Corner Radius
Item #: 47311410
Brand: Walter
Model #: 7053914
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Length (mm) | 19.34 |
| Length (Decimal Inch) | 0.7620 |
| Inscribed Circle (mm) | 19.05 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Thickness (Decimal Inch) | 0.2500 |
| Thickness (mm) | 6.35 |
| Corner Radius (mm) | 1.2 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Manufacturer's Grade | WSM20S |
| Coating | TiAlN+Al2O3+(Al) |
| Chip Breaker | NRS |
| Insert Length (Decimal Inch) | 0.7620 |
| OverallLength (mm) | 19.34 |
| Overall Length (Decimal Inch) | 0.7620 |
| Insert Length (mm) | 19.3439 |
| Hole Diameter (mm) | 7.93 |
| Hole Diameter (Decimal Inch) | 0.3120 |
| ISO Number | CNMG190612-NRS WSM20S |
| Relief Angle | 0 |
| Proprietary Coating Designation | WSM20S |
| Coating Process | PVD |
| Manufacturers Catalog Number | 7053914 |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CNMG-NRS |
| Maximum Depth of Cut (mm) | 19.34 |
| Maximum Depth of Cut (Decimal Inch) | 0.7620 |
| Cutting Width (mm) | 19.34 |
| Shape | Rhombic 80 |
