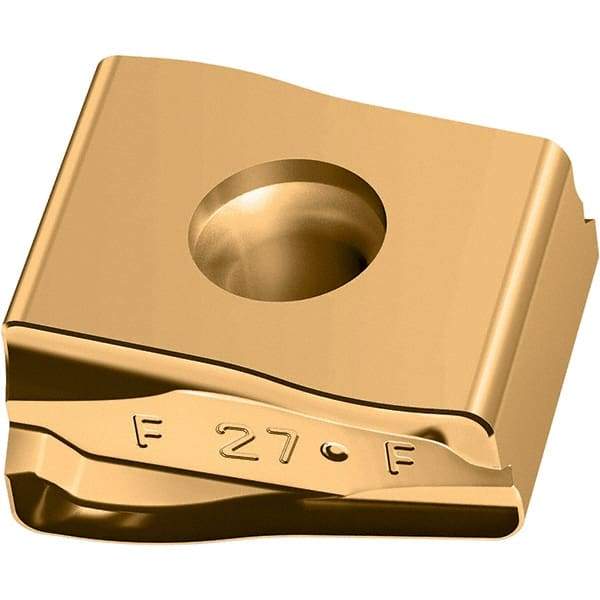

Walter - F27T Grade WKP35S Milling Insert - 10mm Thick, 13.7mm Inscribed Circle, 1.2mm Corner Radius
Item #: 47309836
Brand: Walter
Model #: 6766134
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Manufacturer's Grade | WKP35S |
| Width (mm) | 17.05 |
| Width (Decimal Inch) | 0.6710 |
| Length (mm) | 20.00 |
| Length (Decimal Inch) | 0.7870 |
| Inscribed Circle (mm) | 13.70 |
| Inscribed Circle (Decimal Inch) | 0.5390 |
| Thickness (mm) | 10.00 |
| Thickness (Decimal Inch) | 0.3940 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Corner Radius (mm) | 1.20 |
| Hole Diameter (mm) | 5.50 |
| Hole Diameter (Decimal Inch) | 0.2170 |
| Relief Angle | 0.000 |
| Coating Process | CVD |
| Insert Hand | Right Hand |
| Chipbreaker | F27T |
| Maximum Depth of Cut (mm) | 20.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7870 |
| Manufacturers Catalog Number | LNMX201012R-F27T WKP35S |
