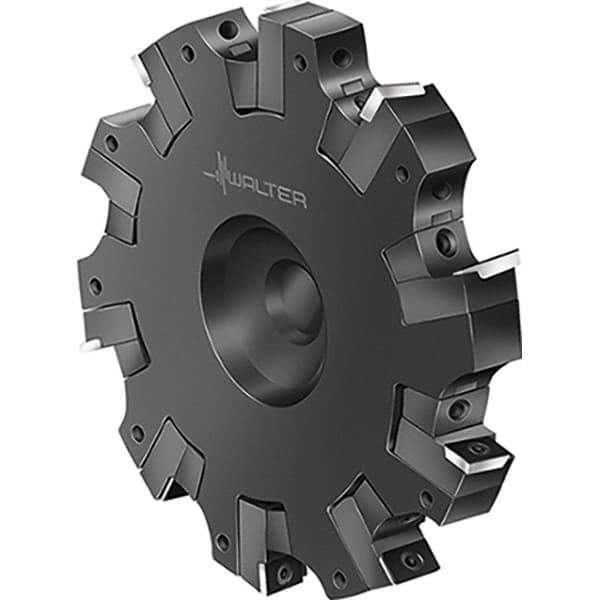

Walter - 0.315" Cutting Width, 160mm Cutter Diam, Indexable Slotting Cutter
Item #: 47294384
Brand: Walter
Model #: 5000716
Exact Tooling IR#: 04
Product Specifications
0.315" Cutting Width, 160mm Cutter Diam, Indexable Slotting Cutter -
| Cutting Width (mm) | 8.00 |
| Cutting Width (Decimal Inch) | 0.315 |
| Cutter Diameter (mm) | 160.00 |
| Cutter Diameter (Decimal Inch) | 6.2990 |
| Maximum RPM | 9999 |
| Minimum Cutting Width (Decimal Inch) | 0.3150 |
| Maximum Cutting Width (Decimal Inch) | 0.3540 |
| Maximum Cutting Width (mm) | 9.00 |
| Hub Diameter (mm) | 75.00 |
| Hub Diameter (Decimal Inch) | 2.9530 |
| Manufacturers Catalog Number | F2252.BN.160.Z06.08.S684 |
| Arbor Hole Diameter (Decimal Inch) | 1.5750 |
