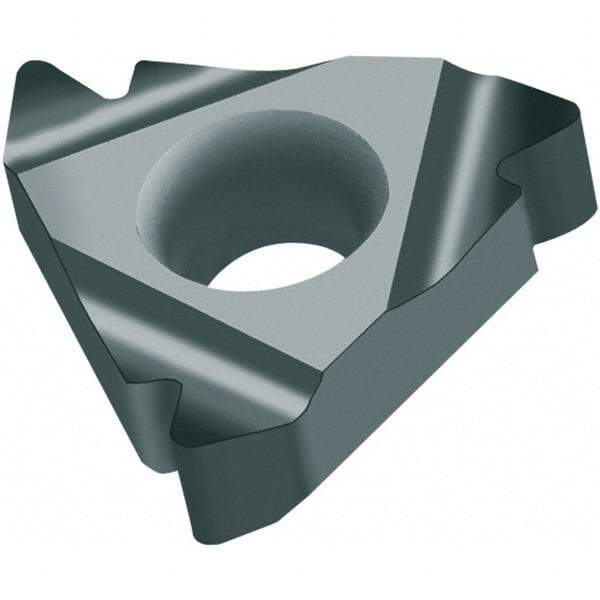

Walter - Internal Left Hand BSF (Withworth 55°), G (PF/BSP/BSPF/GAZ) (Whitworth 55°), Rp (PS/BSPP) Laydown Threading Insert - Grade WMP32, TiAlN Coated 6.35mm Inscribed Circle
Item #: 47285341
Brand: Walter
Model #: 6038991
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Insert Hand | Left Hand |
| Thread Type | Internal |
| Thread Standard | BSF (Withworth 55 ), G (PF/BSP/BSPF/GAZ) (Whitworth 55 ), Rp (PS/BSPP) |
| Manufacturer's Grade | WMP32 |
| External Threads Per Inch | 0.000 ;16 to 48 |
| Internal Threads Per Inch | 0.000 ;16 to 48 |
| Internal Pitch (mm) | 0 ;0.5 to 1.5 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (mm) | 6.35 |
| Thickness (Decimal Inch) | 0.0000 |
| Thickness (mm) | 0.00 |
| Included Angle of Threading Tip | 60 |
| Hole Diameter (mm) | 3.25 |
| Hole Diameter (Decimal Inch) | 0.1280 |
| Coating | TiAlN |
| Corner Radius (mm) | 0.05 |
| Corner Radius (Decimal Inch) | 0.0020 |
| Chipbreaker | A27 |
| Number of Teeth Per Side | 1 |
| Series | NTS_I_TEIL_55 |
