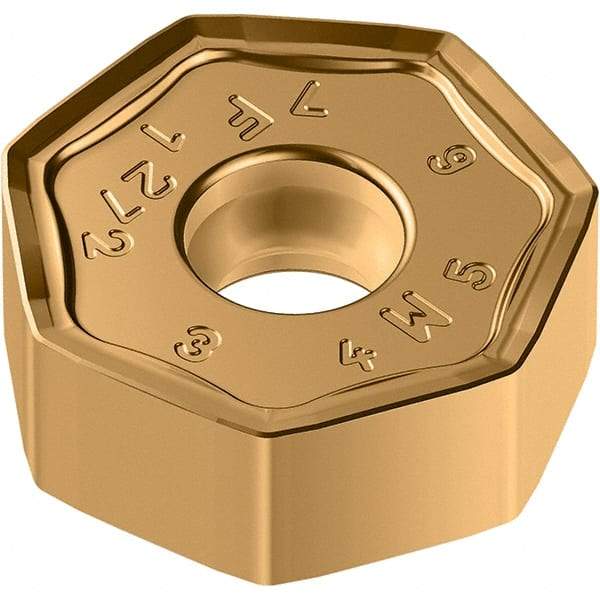

Walter - F27 Grade WKP25S Milling Insert - 4.6mm Thick, 14.5mm Inscribed Circle, 0.8mm Corner Radius
Item #: 47284336
Brand: Walter
Model #: 6768432
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Manufacturer's Grade | WKP25S |
| Length (mm) | 6.98 |
| Length (Decimal Inch) | 0.2750 |
| Inscribed Circle (mm) | 14.50 |
| Inscribed Circle (Decimal Inch) | 0.5710 |
| Thickness (mm) | 4.60 |
| Thickness (Decimal Inch) | 0.1810 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.80 |
| Hole Diameter (mm) | 4.07 |
| Hole Diameter (Decimal Inch) | 0.1600 |
| Relief Angle | 0.000 |
| Coating Process | CVD |
| Insert Hand | Neutral |
| Chipbreaker | F27 |
| Maximum Depth of Cut (mm) | 6.98 |
| Maximum Depth of Cut (Decimal Inch) | 0.2750 |
| Manufacturers Catalog Number | XNMU0705ANN-F27 WKP25S |
