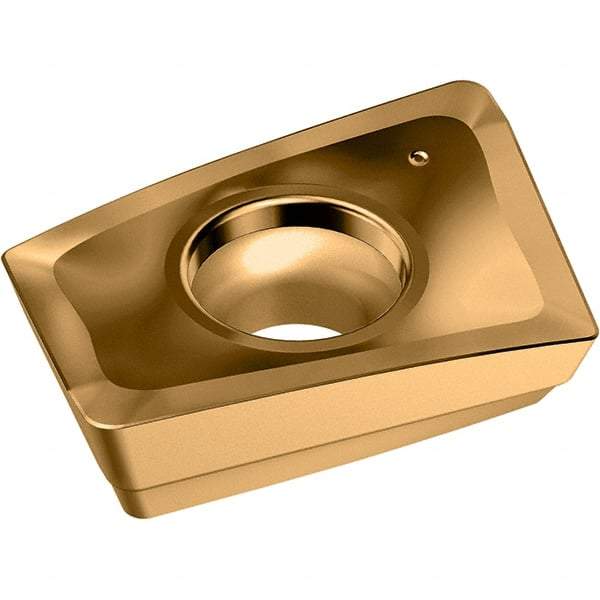

Walter - A57 Grade WKP35S Milling Insert - 4.08mm Thick, 9.68mm Inscribed Circle, 0.8mm Corner Radius
Item #: 47283973
Brand: Walter
Model #: 6796130
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Manufacturer's Grade | WKP35S |
| Width (mm) | 9.68 |
| Width (Decimal Inch) | 0.3810 |
| Length (mm) | 14.10 |
| Length (Decimal Inch) | 0.5550 |
| Inscribed Circle (mm) | 9.68 |
| Inscribed Circle (Decimal Inch) | 0.3810 |
| Thickness (mm) | 4.08 |
| Thickness (Decimal Inch) | 0.1610 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.80 |
| Hole Diameter (mm) | 0.00 |
| Hole Diameter (Decimal Inch) | 0.0000 |
| Relief Angle | 15.000 |
| Coating Process | CVD |
| Insert Hand | Right Hand |
| Chipbreaker | A57 |
| Maximum Depth of Cut (mm) | 14.10 |
| Maximum Depth of Cut (Decimal Inch) | 0.5550 |
| Manufacturers Catalog Number | LDMW14T308R-A57 WKP35S |
