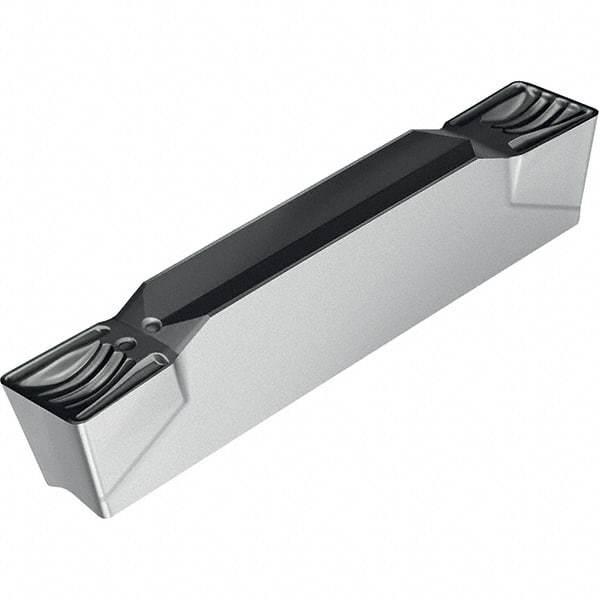

Walter - UF4 Grade WSM23S, 2.5mm Cutting Width Grooving Insert - 1.3mm Max Depth of Cut, 0.2mm Corner Radius, TiAlN+Al2O3+(Al) Finish
Item #: 47280102
Brand: Walter
Model #: 6738332
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Width (mm) | 2.50 |
| Cutting Width (Decimal Inch) | 0.0980 |
| Maximum Depth of Cut (mm) | 1.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.0510 |
| Manufacturer's Grade | WSM23S |
| Coating | TiAlN+Al2O3+(Al) |
| Cutting Direction | Neutral |
| Chipbreaker | UF4 |
| Maximum Corner Radius (Decimal Inch) | 0.0080 |
| Corner Radius (mm) | 0.2 |
| Corner Radius (Decimal Inch) | 0.008 |
| Coating Process | PVD |
| Overall Length (mm) | 16.00 |
| Overall Length (Decimal Inch) | 0.6300 |
| Series | GX-E-UF4 |
| Manufacturers Catalog Number | GX16-1E250N02-UF4 WSM23S |
| External Relief Angle | 21 |
