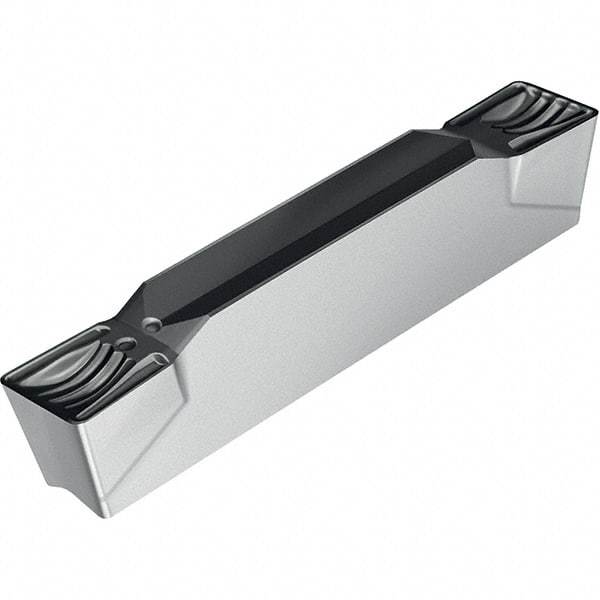

Walter - UF4 Grade WSM23S, 3mm Cutting Width Grooving Insert - 2mm Max Depth of Cut, 0.3mm Corner Radius, TiAlN+Al2O3+(Al) Finish
Item #: 47280094
Brand: Walter
Model #: 6738333
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1180 |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0790 |
| Manufacturer's Grade | WSM23S |
| Coating | TiAlN+Al2O3+(Al) |
| Cutting Direction | Neutral |
| Chipbreaker | UF4 |
| Maximum Corner Radius (Decimal Inch) | 0.0120 |
| Corner Radius (mm) | 0.3 |
| Corner Radius (Decimal Inch) | 0.012 |
| Coating Process | PVD |
| Overall Length (mm) | 16.00 |
| Overall Length (Decimal Inch) | 0.6300 |
| Series | GX-E-UF4 |
| Manufacturers Catalog Number | GX16-2E300N03-UF4 WSM23S |
| External Relief Angle | 21 |
