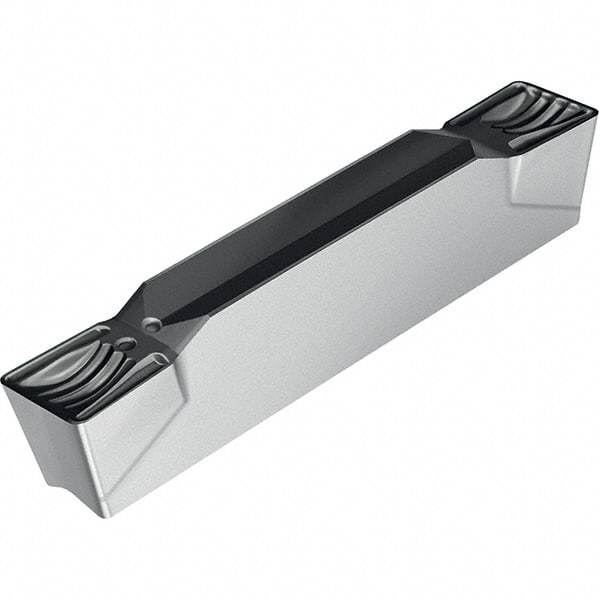

Walter - UF4 Grade WSM23S, 4mm Cutting Width Grooving Insert - 2.8mm Max Depth of Cut, 0.4mm Corner Radius, TiAlN+Al2O3+(Al) Finish
Item #: 47280086
Brand: Walter
Model #: 6738335
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1570 |
| Maximum Depth of Cut (mm) | 2.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.1100 |
| Manufacturer's Grade | WSM23S |
| Coating | TiAlN+Al2O3+(Al) |
| Cutting Direction | Neutral |
| Chipbreaker | UF4 |
| Maximum Corner Radius (Decimal Inch) | 0.0160 |
| Corner Radius (mm) | 0.4 |
| Corner Radius (Decimal Inch) | 0.016 |
| Coating Process | PVD |
| Overall Length (mm) | 24.00 |
| Overall Length (Decimal Inch) | 0.9450 |
| Series | GX-E-UF4 |
| Manufacturers Catalog Number | GX24-3E400N04-UF4 WSM23S |
| External Relief Angle | 10 |
