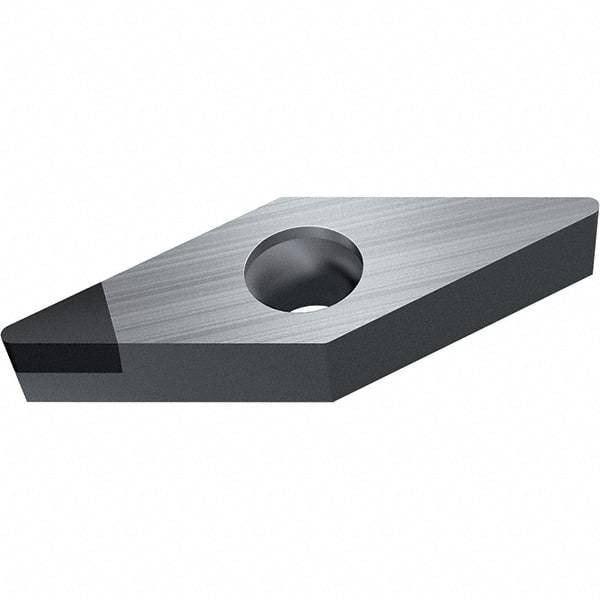

Walter - VCGW1604 FS Grade WDN10 Polycrystalline Diamond (PCD) Turning Insert - 35° Parallelogram, 3/8" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 47053939
Brand: Walter
Model #: 6674458
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | VCGW |
| Insert Size | 1604 |
| Material | Polycrystalline Diamond (PCD) |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1880 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Manufacturer's Grade | WDN10 |
| Chip Breaker | FS |
| Insert Length (Decimal Inch) | 0.6538 |
| Relief Angle | 7 |
| Included Angle | 35 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Shape | Parallelogram |
