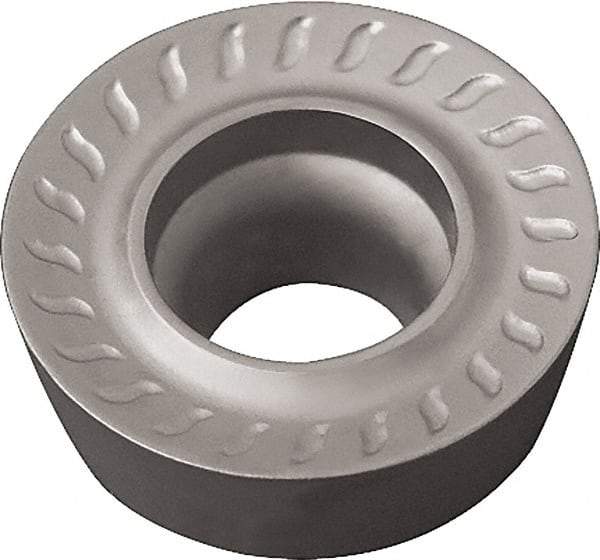

Kyocera - RPMT1606 H Grade PR1230 Carbide Milling Insert - Megacoat Finish, 6.35mm Thick
Item #: 46968137
Brand: Kyocera
Model #: 8833987
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RPMT |
| Insert Size | 1606 |
| Material | Carbide |
| Manufacturer's Grade | PR1230 |
| Coating | Megacoat |
| Width (mm) | 15.00 |
| Width (Decimal Inch) | 0.5906 |
| Thickness (mm) | 6.35 |
| Thickness (Decimal Inch) | 0.2500 |
| Hole Diameter (mm) | 5.50 |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Relief Angle | 11.000 |
| Rake Angle | 3 |
| Rake | Positive |
| Coating Process | PVD |
| Shape | Round |
| Insert Hand | Right Hand |
| Chipbreaker | H |
| Manufacturers Catalog Number | 1606M0-H |
