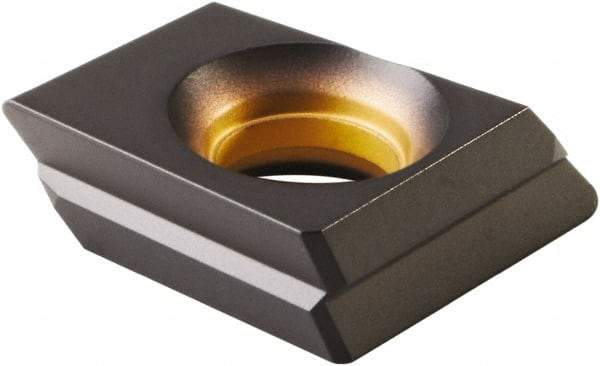

Kennametal - D2FIX110405 MN Grade KCP25 Carbide Turning Insert - TiCN/Al2O3 Finish, 56° Irregular, 4mm Thick, 0.5mm Corner Radius
Item #: 46885513
Brand: Kennametal
Model #: 4054272
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | D2FIX |
| Insert Size | 110405 |
| Material | Carbide |
| Length (mm) | 10.50 |
| Length (Decimal Inch) | 0.4134 |
| Thickness (Decimal Inch) | 0.1575 |
| Thickness (mm) | 4.00 |
| Corner Radius (mm) | 0.50 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Manufacturer's Grade | KCP25 |
| Coating | TiCN/Al2O3 |
| Chip Breaker | MN |
| Hole Diameter (mm) | 4.80 |
| Hole Diameter (Decimal Inch) | 0.1890 |
| ISO Number | D2FIX110405LMN |
| Rake | Negative |
| Rake Angle | 10 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Included Angle | 56 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Series | Fix-Perfect |
| Insert Holding Method | Pin |
| Shape | Irregular |
