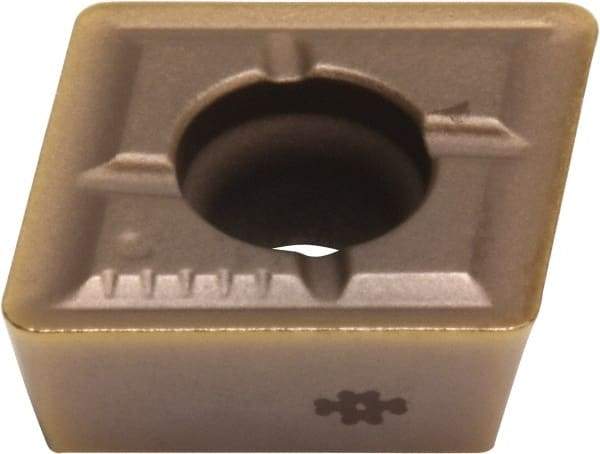

Sumitomo - WDXT052504 H Grade ACP300 Carbide Indexable Drill Insert - TiAlN/AlCrN Finish, Parallelogram, 5mm Inscribed Circle
Item #: 46825667
Brand: Sumitomo
Model #: 1AHB066
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WDXT |
| Insert Size | 052504 |
| Material | Carbide |
| Manufacturer's Grade | ACP300 |
| Inscribed Circle (mm) | 5.00 |
| Inscribed Circle (Decimal Inch) | 0.1969 |
| Thickness (Decimal Inch) | 0.0984 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Shape | Parallelogram |
| Width (Decimal Inch) | 0.1969 |
| Coating | TiAlN/AlCrN |
| Coating Process | PVD |
| Cutting Direction | Right Hand |
| Chipbreaker | H |
