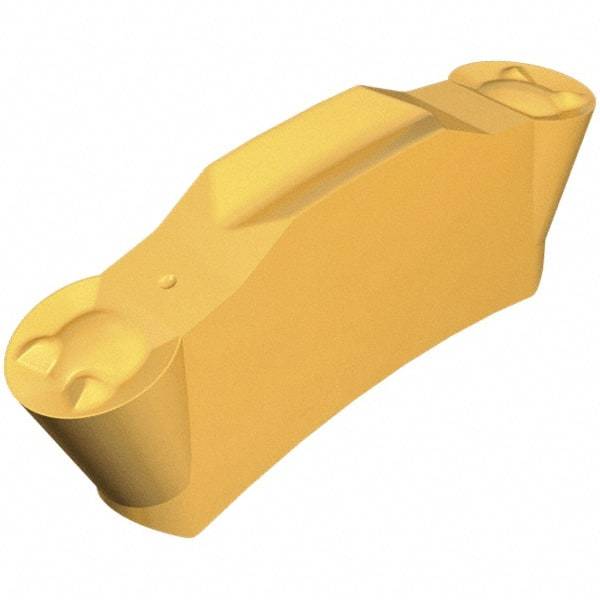

Iscar - 315TGMF Grade IC5010, 3mm Cutting Width Carbide Grooving Insert - 11.4mm Max Depth of Cut, 1.5mm Corner Radius, TiCN/Al2O3/TiN Finish
Item #: 46699880
Brand: Iscar
Model #: 6410574
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TGMF |
| Insert Size | 315 |
| Material | Carbide |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1180 |
| Maximum Depth of Cut (mm) | 11.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.4490 |
| Manufacturer's Grade | IC5010 |
| Coating | TiCN/Al2O3/TiN |
| Multi-Use Application | Grooving; Parting; Turning |
| Maximum Corner Radius (Decimal Inch) | 0.0590 |
| Corner Radius (mm) | 1.50 |
| Corner Radius (Decimal Inch) | 0.0590 |
| Coating Process | CVD |
| Overall Length (mm) | 13.50 |
| Overall Length (Decimal Inch) | 0.5310 |
| Series | Top Grip |
| ISO Number | TGMF 315 IC5010 |
| Manufacturers Catalog Number | 6410574 |
| Included Angle | 250 |
