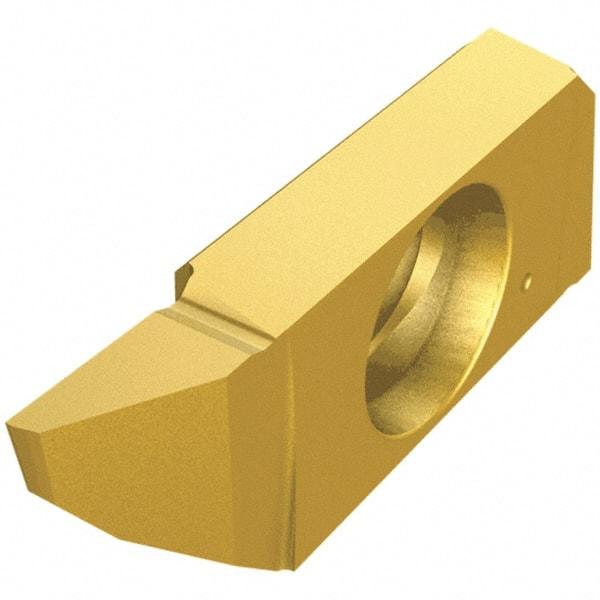

Iscar - SCIR22-ER00 Grade IC1008, 0.7mm Cutting Width Carbide Cutoff Insert - Right Hand Lead Angle, TiAlN/TiN Finish
Item #: 46699864
Brand: Iscar
Model #: 6410064
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | SCIR |
| Insert Size | 22-ER00 |
| Lead Angle Direction | Right Hand |
| Lead Angle | 60 |
| Cutting Width (mm) | 0.70 |
| Cutting Width (Decimal Inch) | 0.0280 |
| Manufacturer's Grade | IC1008 |
| Coating | TiAlN/TiN |
| Relief Angle | 3 |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0980 |
| Multi-Use Application | Turning |
| Coating Process | PVD |
| Insert Hand | Right Hand |
| Manufacturers Catalog Number | SCIR 22-ER00-07K10 |
