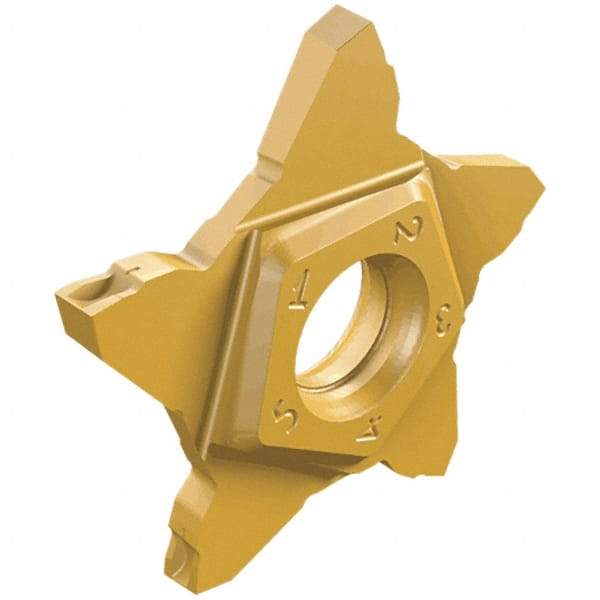

Iscar - 24R200PENTA C Grade IC1008, 2mm Cutting Width Carbide Grooving Insert - 6mm Max Depth of Cut, Right Hand, 0.1mm Corner Radius, TiAlN/TiN Finish
Item #: 46698353
Brand: Iscar
Model #: 6004929
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | PENTA |
| Insert Size | 24R200 |
| Material | Carbide |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0790 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Manufacturer's Grade | IC1008 |
| Coating | TiAlN/TiN |
| Insert Hand | Right Hand |
| Chipbreaker | C |
| Multi-Use Application | Grooving; Parting; Turning |
| Maximum Corner Radius (Decimal Inch) | 0.0040 |
| Corner Radius (mm) | 0.10 |
| Corner Radius (Decimal Inch) | 0.0040 |
| Coating Process | PVD |
| Series | PentaCut |
| Rake | Positive |
| ISO Number | PENTA 24R200C06D IC1008 |
| Manufacturers Catalog Number | 6004929 |
| Included Angle | 6 |
