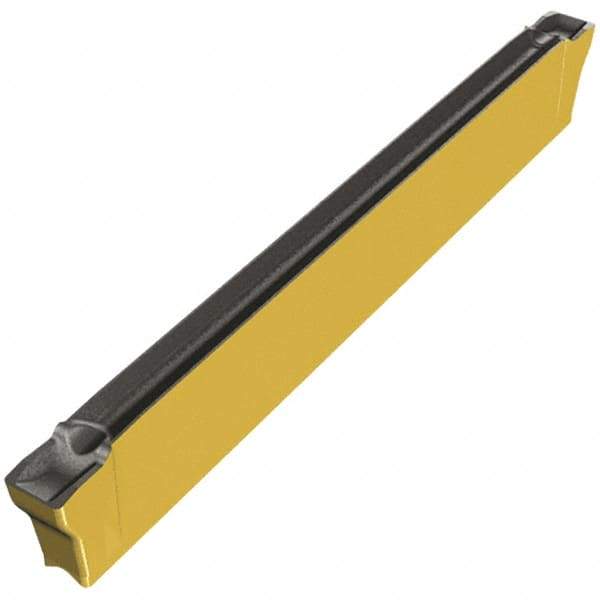

Iscar - DGL2002 6D Grade IC830, 2mm Cutting Width Carbide Cutoff Insert - Left Hand Lead Angle, 0.2mm Corner Radius, TiAlN/AlTiN/TiN Finish
Item #: 46698262
Brand: Iscar
Model #: 6004717
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | DGL |
| Insert Size | 2002 |
| Lead Angle Direction | Left Hand |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0790 |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN/AlTiN/TiN |
| Relief Angle | 7 |
| Chipbreaker | 6D |
| Maximum Depth of Cut (mm) | 30.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.1810 |
| Multi-Use Application | Parting |
| Coating Process | PVD |
| Overall Length (mm) | 32.00 |
| Overall Length (Decimal Inch) | 1.2600 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Corner Radius (mm) | 0.20 |
| Insert Holding Method | Clamp |
| Width Tolerance | 0.10 (mm) |
| Manufacturers Catalog Number | DGL 2002C-6D-XL |
