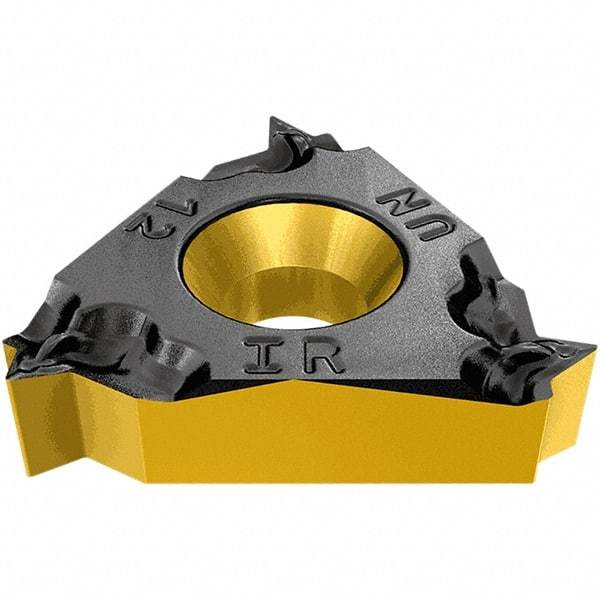

Iscar - 27ER External Right Hand 4 UN Laydown Threading Insert - Grade IC908, TiAlN Coated Carbide, 15.88mm Inscribed Circle
Item #: 46698023
Brand: Iscar
Model #: 5990325
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 27ER |
| Insert Hand | Right Hand |
| Thread Type | External |
| Thread Standard | UN |
| Material Grade | Submicron |
| Manufacturer's Grade | IC908 |
| External Threads Per Inch | 4 |
| External Pitch (mm) | 4.00 |
| Threads Per Inch | 4 |
| Pitch (mm) | 4.00 |
| Inscribed Circle (mm) | 15.88 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Coating | TiAlN |
| Coating Process | PVD |
| Corner Radius (mm) | 0.85 |
| Corner Radius (Decimal Inch) | 0.0330 |
