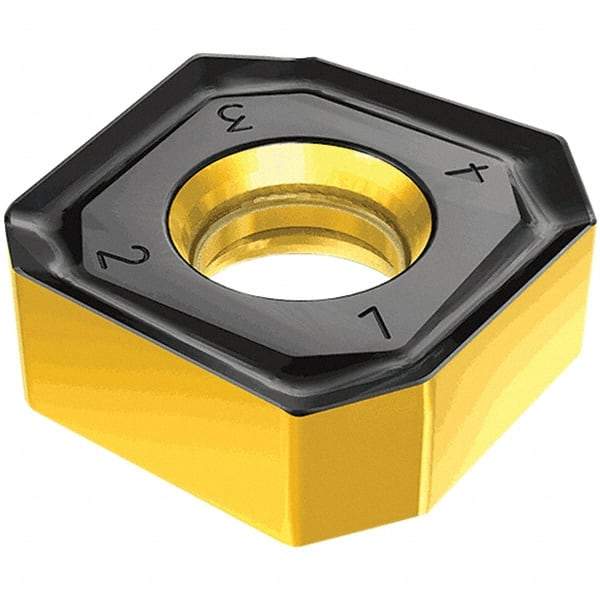

Iscar - S845 SNMU1806 MM Grade IC330 Carbide Milling Insert - TiCN/TiN Finish, 7mm Thick, 18.8mm Inscribed Circle, 1mm Corner Radius
Item #: 46696589
Brand: Iscar
Model #: 5668859
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | S845 SNMU |
| Insert Size | 1806 |
| Material | Carbide |
| Manufacturer's Grade | IC330 |
| Coating | TiCN/TiN |
| Width (mm) | 3.50 |
| Width (Decimal Inch) | 0.1380 |
| Inscribed Circle (mm) | 18.80 |
| Inscribed Circle (Decimal Inch) | 0.7400 |
| Thickness (mm) | 7.00 |
| Thickness (Decimal Inch) | 0.2760 |
| Corner Radius (Decimal Inch) | 0.0390 |
| Corner Radius (mm) | 1.00 |
| Coating Process | PVD |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | MM |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Cutting Edge Style | Helical |
| Manufacturers Catalog Number | S845 SNMU 1806ANR-MM |
| ISO Number | S845 SNMU 1806ANR-MM |
| ANSI Number | S845 SNMU 1806ANR-MM |
