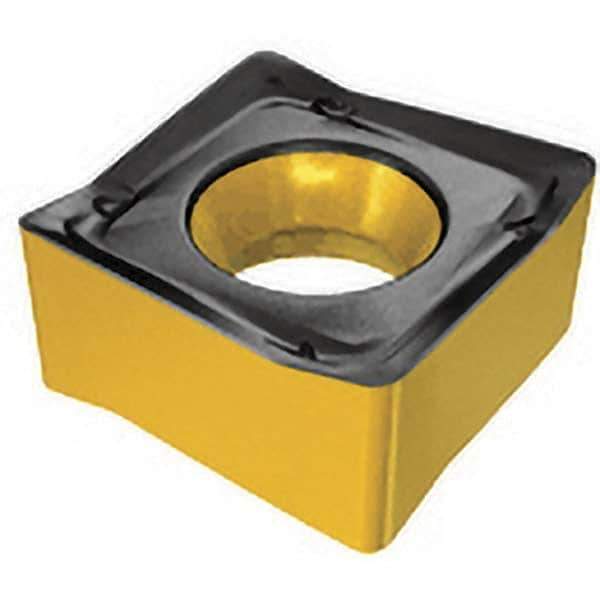

Iscar - S890 SNMU1305 PNTN Grade IC808 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 5.7mm Thick, 0.8mm Corner Radius
Item #: 46696407
Brand: Iscar
Model #: 5668705
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | S890 SNMU |
| Insert Size | 1305 |
| Material | Carbide |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Length (mm) | 13.00 |
| Length (Decimal Inch) | 0.5120 |
| Thickness (mm) | 5.70 |
| Thickness (Decimal Inch) | 0.2240 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.80 |
| Coating Process | PVD |
| Shape | Square |
| Chipbreaker | PNTN |
| Maximum Depth of Cut (mm) | 9.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3540 |
| Manufacturers Catalog Number | S890 SNMU 1305PNTN |
| ISO Number | S890 SNMU 1305PNTN |
| ANSI Number | S890 SNMU 1305PNTN |
