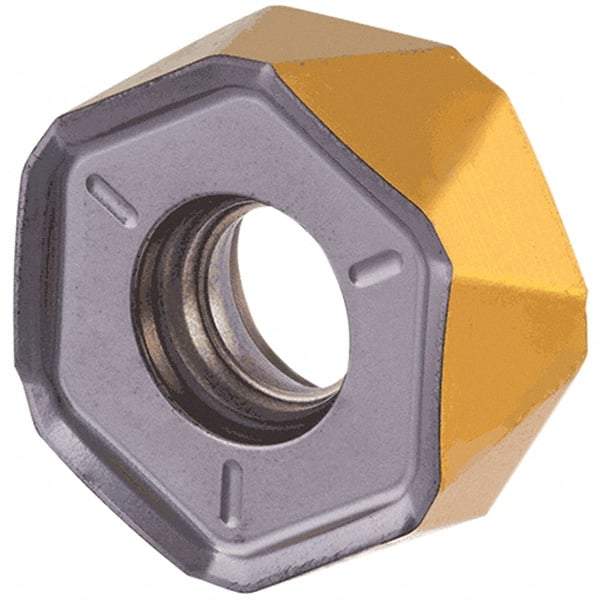

Iscar - IQ845 SYHU0704 ADN Grade IC840 Carbide Milling Insert - TiSiN Finish, 4.2mm Thick, 13.8mm Inscribed Circle, 0.8mm Corner Radius
Item #: 46696332
Brand: Iscar
Model #: 5668495
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | IQ845 SYHU |
| Insert Size | 0704 |
| Material | Carbide |
| Manufacturer's Grade | IC840 |
| Coating | TiSiN |
| Inscribed Circle (mm) | 13.80 |
| Inscribed Circle (Decimal Inch) | 0.5430 |
| Thickness (mm) | 4.20 |
| Thickness (Decimal Inch) | 0.1650 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.80 |
| Coating Process | PVD |
| Shape | Square |
| Chipbreaker | ADN |
| Maximum Depth of Cut (mm) | 4.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.1810 |
| Manufacturers Catalog Number | IQ845 SYHU 0704ADN |
| ISO Number | IQ845 SYHU 0704ADN |
| ANSI Number | IQ845 SYHU 0704ADN |
