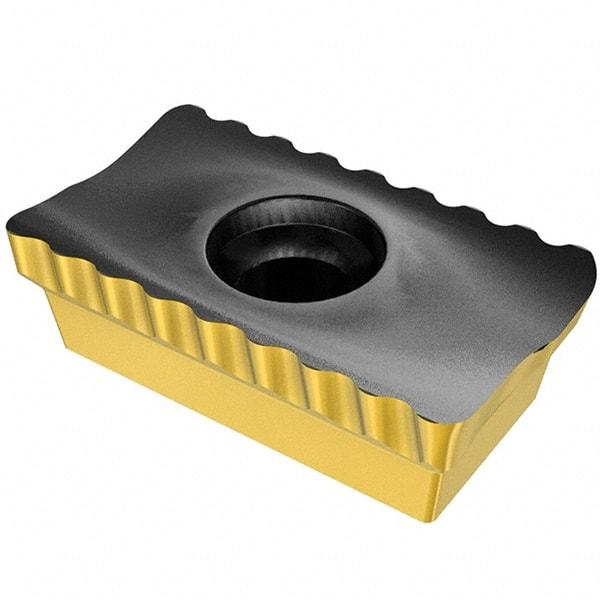

Iscar - P290 ACKT204 FW Grade IC330 Carbide Milling Insert - TiCN/TiN Finish, 4.4mm Thick, 0.9mm Corner Radius
Item #: 46696225
Brand: Iscar
Model #: 5668289
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | P290 ACKT |
| Insert Size | 204 |
| Material | Carbide |
| Manufacturer's Grade | IC330 |
| Coating | TiCN/TiN |
| Width (mm) | 8.20 |
| Width (Decimal Inch) | 0.3230 |
| Length (mm) | 12.80 |
| Length (Decimal Inch) | 0.5040 |
| Thickness (mm) | 4.40 |
| Thickness (Decimal Inch) | 0.1730 |
| Corner Radius (Decimal Inch) | 0.0350 |
| Corner Radius (mm) | 0.90 |
| Coating Process | PVD |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| Chipbreaker | FW |
| Manufacturers Catalog Number | P290 ACKT 1204PDR-FW |
| ISO Number | P290 ACKT 1204PDR-FW |
| ANSI Number | P290 ACKT 1204PDR-FW |
