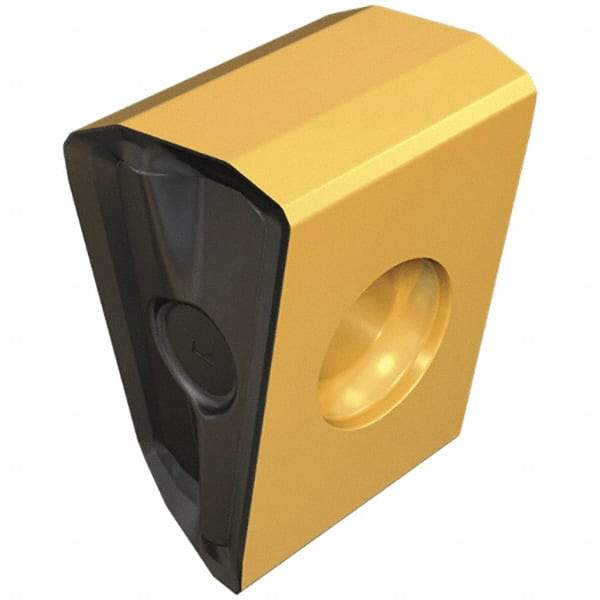

Iscar - T465 LNMT2212 TR Grade IC810 Carbide Milling Insert - AlTiN/TiN Finish, 19.8mm Thick
Item #: 46696217
Brand: Iscar
Model #: 5668279
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | T465 LNMT |
| Insert Size | 2212 |
| Material | Carbide |
| Manufacturer's Grade | IC810 |
| Coating | AlTiN/TiN |
| Width (mm) | 12.00 |
| Width (Decimal Inch) | 0.4720 |
| Length (mm) | 25.39 |
| Length (Decimal Inch) | 1.0000 |
| Thickness (mm) | 19.80 |
| Thickness (Decimal Inch) | 0.7800 |
| Coating Process | PVD |
| Included Angle | 65 |
| Shape | Tangential |
| Chipbreaker | TR |
| Maximum Depth of Cut (mm) | 19.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7480 |
| Manufacturers Catalog Number | T465 LNMT 2212-ZNTR |
| ISO Number | T465 LNMT 2212-ZNTR |
| ANSI Number | T465 LNMT 2212-ZNTR |
