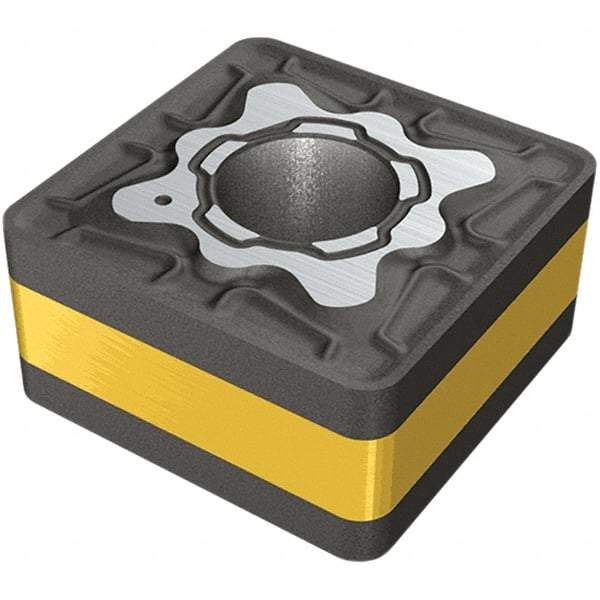

Iscar - SNMG543 M3P Grade IC8250 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 90° Square, 15.88mm Inscr Circle, 6.35mm Thick, 1.2mm Corner Radius
Item #: 46694063
Brand: Iscar
Model #: 5567498
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMG |
| Insert Size | 543 |
| Material | Carbide |
| Inscribed Circle (mm) | 15.88 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness (Decimal Inch) | 0.2500 |
| Thickness (mm) | 6.35 |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Manufacturer's Grade | IC8250 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | M3P |
| ISO Number | SNMG 543-M3P |
| Rake | Positive |
| Coating Process | MTCVD |
| Manufacturers Catalog Number | 5567498 |
| Primary Workpiece Material | M; P |
| Secondary Workpiece Material | None |
| Included Angle | 90 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 7.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2950 |
| Multi Use Application | Turning |
| Shape | Square |
