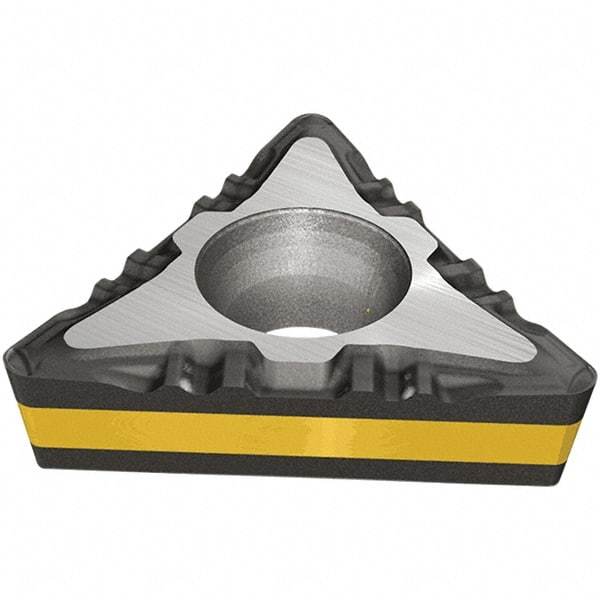

Iscar - TCMT2-2 F3P Grade IC8150 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 60° Triangle, 2.38mm Thick, 0.8mm Corner Radius
Item #: 46693875
Brand: Iscar
Model #: 5566884
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TCMT |
| Insert Size | 2-2 |
| Material | Carbide |
| Length (mm) | 11.00 |
| Length (Decimal Inch) | 0.4330 |
| Thickness (Decimal Inch) | 0.0940 |
| Thickness (mm) | 2.38 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Manufacturer's Grade | IC8150 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | F3P |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| ISO Number | TCMT 2-2-F3P |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | MTCVD |
| Manufacturers Catalog Number | 5566884 |
| Primary Workpiece Material | K; M; P |
| Secondary Workpiece Material | None |
| Included Angle | 60 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 1.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.0670 |
| Multi Use Application | Turning |
| Shape | Triangle |
