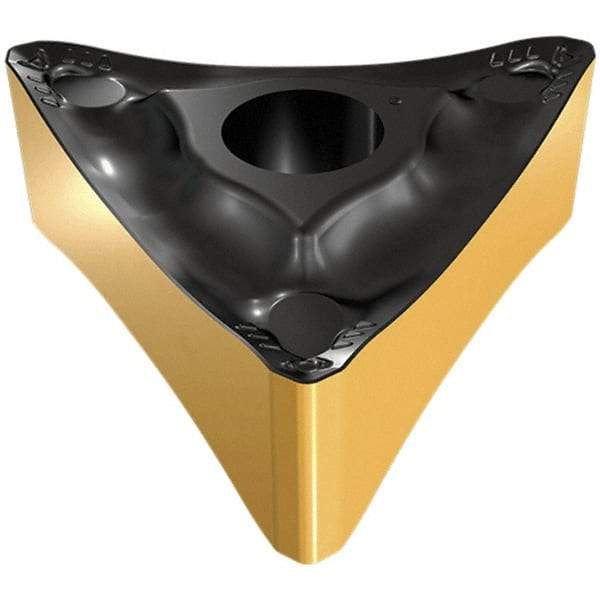

Iscar - TNMX453 Grade IC8250 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 60° Triangle, 12.7mm Inscr Circle, 7.4mm Thick, 1.2mm Corner Radius
Item #: 46677381
Brand: Iscar
Model #: 5567455
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMX |
| Insert Size | 453 |
| Material | Carbide |
| Inscribed Circle (mm) | 12.70 |
| Thickness (mm) | 7.40 |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Manufacturer's Grade | IC8250 |
| Coating | TiCN/Al2O3/TiN |
| Insert Length (mm) | 22 |
| ISO Number | TNMX 220712-M4PW |
| Rake | Positive |
| Relief Angle | 0 |
| Coating Process | CVD |
| Manufacturers Catalog Number | TNMX 453-M4PW |
| Primary Workpiece Material | P |
| Included Angle | 60 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Series | Heliturn LD |
| Maximum Depth of Cut (mm) | 6.00 |
| Shape | Triangle |
