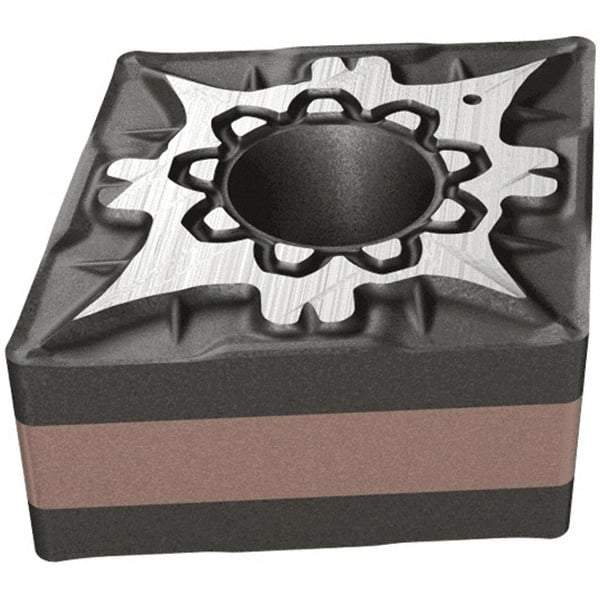

Iscar - CNMG433 F3M Grade IC4 Turning Insert - Uncoated, 80° Diamond, 12.7mm Inscr Circle, 4.76mm Thick, 1.2mm Corner Radius
Item #: 46675807
Brand: Iscar
Model #: 5569138
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Insert Size | 433 |
| Length (mm) | 12.90 |
| Length (Decimal Inch) | 0.5080 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1870 |
| Thickness (mm) | 4.76 |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Manufacturer's Grade | IC4 |
| Coating | Uncoated |
| Chip Breaker | F3M |
| ISO Number | CNMG 433-F3M |
| Manufacturers Catalog Number | 5569138 |
| Primary Workpiece Material | N |
| Secondary Workpiece Material | None |
| Included Angle | 80 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0790 |
| Shape | Diamond |
