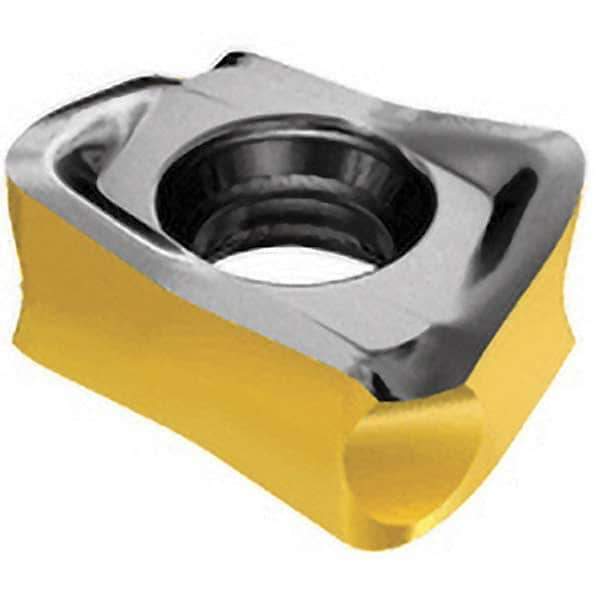

Iscar - H490 ANKX0904 FF Grade IC808 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 4.3mm Thick, 1mm Corner Radius
Item #: 46673539
Brand: Iscar
Model #: 5668132
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | H490 ANKX |
| Insert Size | 0904 |
| Material | Carbide |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Width (mm) | 6.20 |
| Width (Decimal Inch) | 0.2440 |
| Length (mm) | 8.50 |
| Length (Decimal Inch) | 0.3350 |
| Thickness (mm) | 4.30 |
| Thickness (Decimal Inch) | 0.1690 |
| Corner Radius (Decimal Inch) | 0.0390 |
| Corner Radius (mm) | 1.00 |
| Rake Angle | 3 |
| Coating Process | PVD |
| Shape | Rectangle |
| Chipbreaker | FF |
| Cutting Edge Style | Helical |
| Manufacturers Catalog Number | H490 ANKX 0904R12T-FF |
| ISO Number | H490 ANKX 0904R12T-FF |
| ANSI Number | H490 ANKX 0904R12T-FF |
