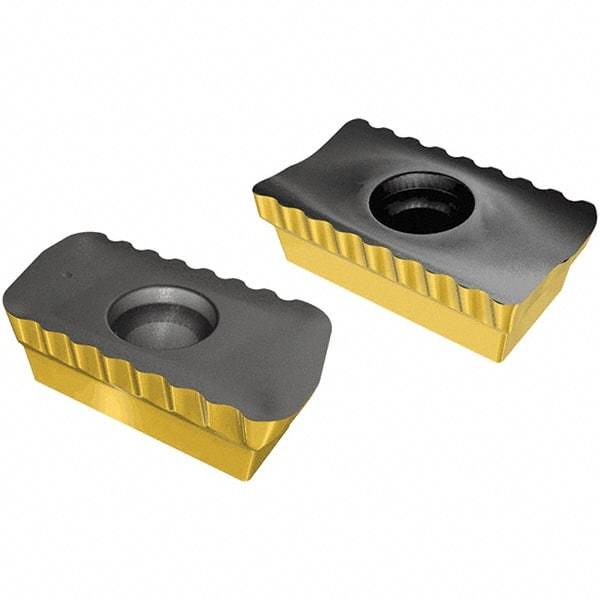

Iscar - P290 ACKT204 FWP Grade IC840 Carbide Milling Insert - TiSiN Finish, 4.4mm Thick, 0.9mm Corner Radius
Item #: 46673349
Brand: Iscar
Model #: 5668291
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | P290 ACKT |
| Insert Size | 204 |
| Material | Carbide |
| Manufacturer's Grade | IC840 |
| Coating | TiSiN |
| Width (mm) | 8.20 |
| Width (Decimal Inch) | 0.3230 |
| Length (mm) | 12.80 |
| Length (Decimal Inch) | 0.5040 |
| Thickness (mm) | 4.40 |
| Thickness (Decimal Inch) | 0.1730 |
| Corner Radius (Decimal Inch) | 0.0350 |
| Corner Radius (mm) | 0.90 |
| Coating Process | PVD |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| Chipbreaker | FWP |
| Manufacturers Catalog Number | P290 ACKT 1204PDR-FWP |
| ISO Number | P290 ACKT 1204PDR-FWP |
| ANSI Number | P290 ACKT 1204PDR-FWP |
