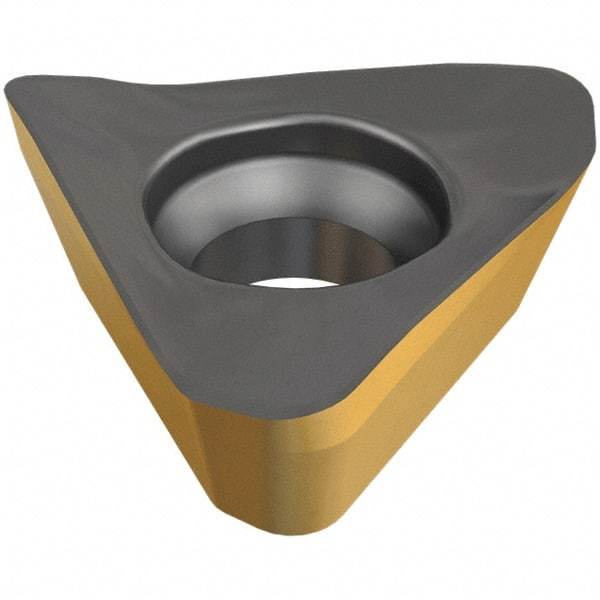

Iscar - HM390 TPKR100304 PDRHM Grade IC830 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 4mm Thick, 7.5mm Inscribed Circle, 0.4mm Corner Radius
Item #: 46673174
Brand: Iscar
Model #: 5668464
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HM390 TPKR |
| Insert Size | 100304 |
| Material | Carbide |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN/AlTiN/TiN |
| Length (mm) | 10.90 |
| Length (Decimal Inch) | 0.4290 |
| Inscribed Circle (mm) | 7.50 |
| Inscribed Circle (Decimal Inch) | 0.2950 |
| Thickness (mm) | 4.00 |
| Thickness (Decimal Inch) | 0.1570 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Corner Radius (mm) | 0.40 |
| Coating Process | PVD |
| Shape | Triangle |
| Chipbreaker | PDRHM |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Cutting Edge Style | Helical |
| Manufacturers Catalog Number | HM390 TPKR 100304PDRHM |
| ISO Number | HM390 TPKR 100304PDRHM |
| ANSI Number | HM390 TPKR 100304PDRHM |
